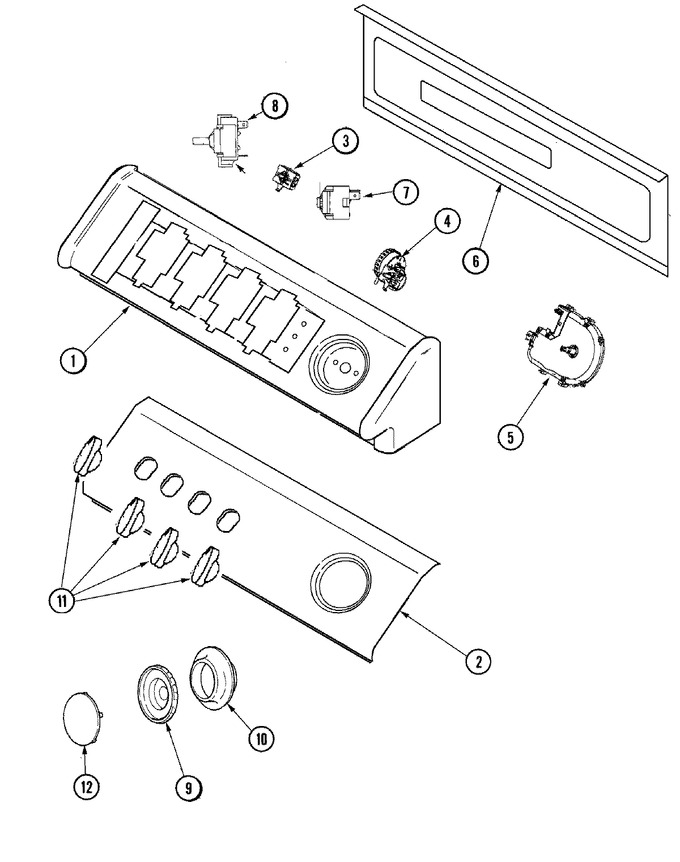

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27001110		Console (wht)	10	Appelez-nous	-
2	27001050		Facia Ground Wire Assembly	10	Appelez-nous	-
2	27001061		Facia	10	Appelez-nous	-
3	27001059		Switch, Temperature (6 Pos)	10			$ 15.88
4	27001047		Switch, Pressure	10			$ 39.47
5	WP33002917		Screw (hex Head)   (Replaces: 33001855)	10		Immediately	$ 6.90
5	27001060		Timer	10			$ 177.30
6	27001051		Back Panel, Hood/console	10	Appelez-nous	-
6	40131001		Board, Atc 3 Point	10	Appelez-nous	-
7	22001794		Switch, Rotary (2 Pos)	10			$ 24.91
8	22002578		Switch, Speed (rotary)	10	Appelez-nous	-
9	27001224		Knob, Timer (gray)	10	Appelez-nous	-
10	27001229		Skirt, Timer Knob (wht)	10	Appelez-nous	-
10	22002997		Pin, Locking	10	Appelez-nous	-
11	WP22001663		Knob, Selector (wht)   (Replaces: 22003913)	10		Immediately	$ 53.16
12	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
13	40098701		Cord, Power	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
