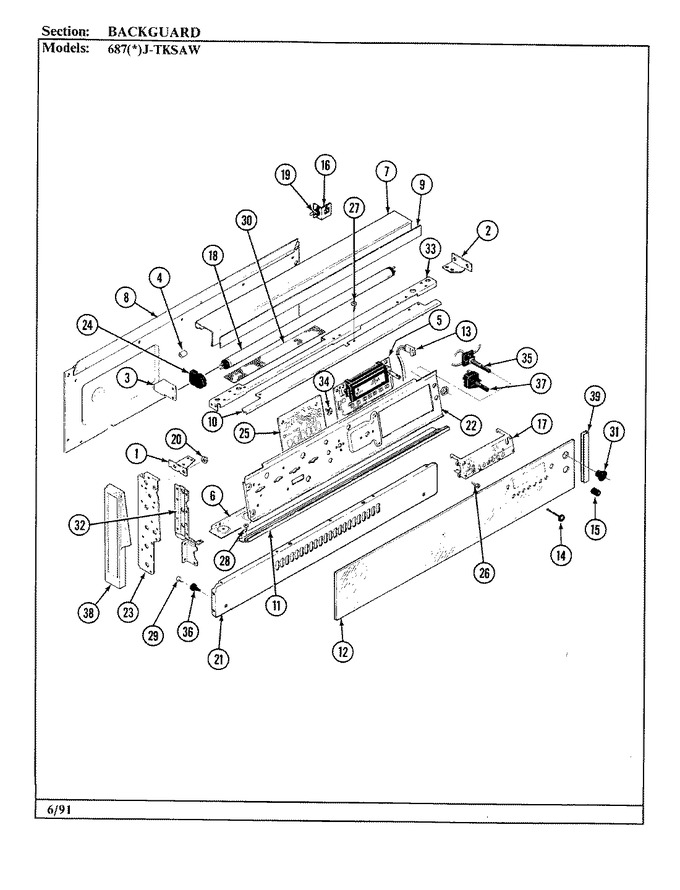

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F002-34 | Bracket (left) | 1 |
|
- | ||||
| 2 | 3801F109-34 | (right) | 1 |
|
- | ||||
| 2 | 7109P010-60 | Washer, Nylon | 1 |
|
- | ||||
| 3 | 3801F006-51 | Bracket, Lamp | 1 |
|
- | ||||
| 4 | 8007P004-60 | Bushing, Lamp Cover | 1 |
|
- | ||||
| 5 | 7601P101-60 | Clock | 1 |
|
- | ||||
| 6 | 4005F155-80 | Cover, Bottom Bkdg Wire | 1 |
|
- | ||||
| 7 | 7724P046-60 | Cover, Bkgd Lamp (gray) | 1 |
|
- | ||||
| 8 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 8 | 4005F100-80 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 9 | 7728P071-60 | Overlay Trim, Lamp Cover | 1 |
|
- | ||||
| 10 | 7706P166-60 | Extrusion, Glass Spt | 1 |
|
- | ||||
| 11 | 7706P017-60 | Extrusion, Trim | 1 |
|
- | ||||
| 11 | 7706P097-60 | Extrusion | 1 |
|
- | ||||
| 12 | 7910P138-60 | Glass, Bkgd. | 1 |
|
- | ||||
| 13 | 5170P007-60 | Harness Oven Sensor | 1 |
|
- | ||||
| 14 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 15 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 16 | 3801F213-45 | Bracket | 1 |
|
- | ||||
| 17 | 7730P005-60 | Lens, Clock | 1 |
|
- | ||||
| 18 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 1 |
|
Immediately | $ 121.45 | |||
| 19 | 7403P188-60 | Switch | 1 |
|
- | ||||
| 20 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 21 | 2620F053-09 | Panel, Lower | 1 |
|
- | ||||
| 22 | 3605F152-80 | Plate, Switch Mtg. | 1 |
|
- | ||||
| 23 | 3605F006-80 | Plate, Control Panel End (lft) | 1 |
|
- | ||||
| 23 | 3605F008-80 | Plate | 1 |
|
- | ||||
| 23 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 24 | 7408P005-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 24 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 25 | 7428P006-60 | Relay, Board Assy. | 1 |
|
- | ||||
| 25 | 5170P006-60 | Harness, Relay | 1 |
|
- | ||||
| 26 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 27 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 28 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 29 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 30 | 3604F079-80 | Shield, Ov Lamp Recpt | 1 |
|
- | ||||
| 32 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 32 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 33 | 3807F215-80 | Support, Lamp | 1 |
|
- | ||||
| 34 | 8004P020-60 | Support, Relay Board | 1 |
|
- | ||||
| 36 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 37 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 37 | 7401P020-60 | Block, Main Terminal | 1 |
|
- | ||||
| 38 | 7726P030-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 38 | 7726P029-60 | Trim, End Cap (lt) | 1 |
|
- | ||||
| 39 | 7720P061-60 | Trim, Glass | 1 |
|
- | ||||
| 39 | 7720P017-60 | Trim | 1 |
|
- |
