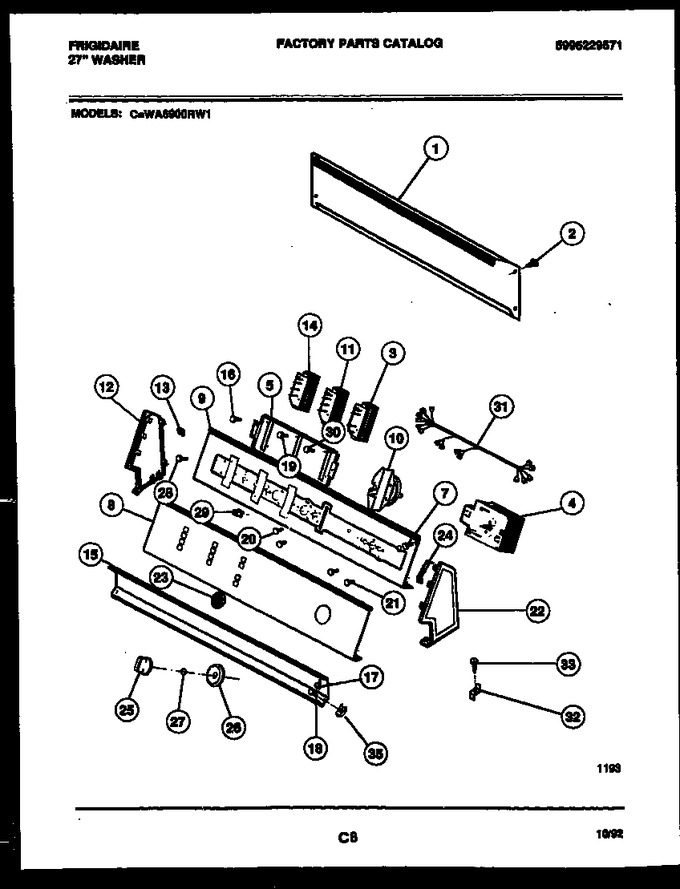

05 - Console And Control Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303284440		Backsheet		Appelez-nous	-
2	5303281035		Screw (3)		Appelez-nous	-
3	5308015910		Switch - Rinse/soak		Appelez-nous	-
4	5303271772		Timer		Appelez-nous	-
5	3201324		Bracket - Switches		Appelez-nous	-
7	08010789		Screw		Appelez-nous	-
8	131097400		Panel - Control		Appelez-nous	-
9	5303208794		Bracket - Controls		Appelez-nous	-
10	131073000		Switch - Pressure		Appelez-nous	-
11	5308015909		Speed Switch		Appelez-nous	-
12	5303270198		End Cap-lh		Appelez-nous	-
13	5308014350		Clip (8)		Appelez-nous	-
14	5308015908		Switch - Temperature		Appelez-nous	-
15	131019500		Panel-bottom		Appelez-nous	-
16	08010804		Screw		Appelez-nous	-
17	08010782		Screw (3)		Appelez-nous	-
18	5303279343		Screw		Appelez-nous	-
19	08010804		Screw		Appelez-nous	-
20	5303285470		Screw		Appelez-nous	-
21	3161188		Screw		Appelez-nous	-
22	5303270200		End Cap-rh		Appelez-nous	-
23	5303270202		Knob - Rotary		Appelez-nous	-
24	08014349		Ground Strap		Appelez-nous	-
25	5303270203		Knob - Timer				$ 32.92
26	5303270205		Pointer		Appelez-nous	-
27	5308015493		Spacer - Timer				$ 14.36
28	08004660		Screw (3)		Appelez-nous	-
29	5303280417		Pushbutton (12)		Appelez-nous	-
30	08010804		Screw		Appelez-nous	-
31	131015800		Harness		Appelez-nous	-
32	5379171000		Terminal		Appelez-nous	-
33	08001689		Screw		Appelez-nous	-
35	5300503065		Nut				$ 6.09
31A	5303285493		Clip - Harness (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
