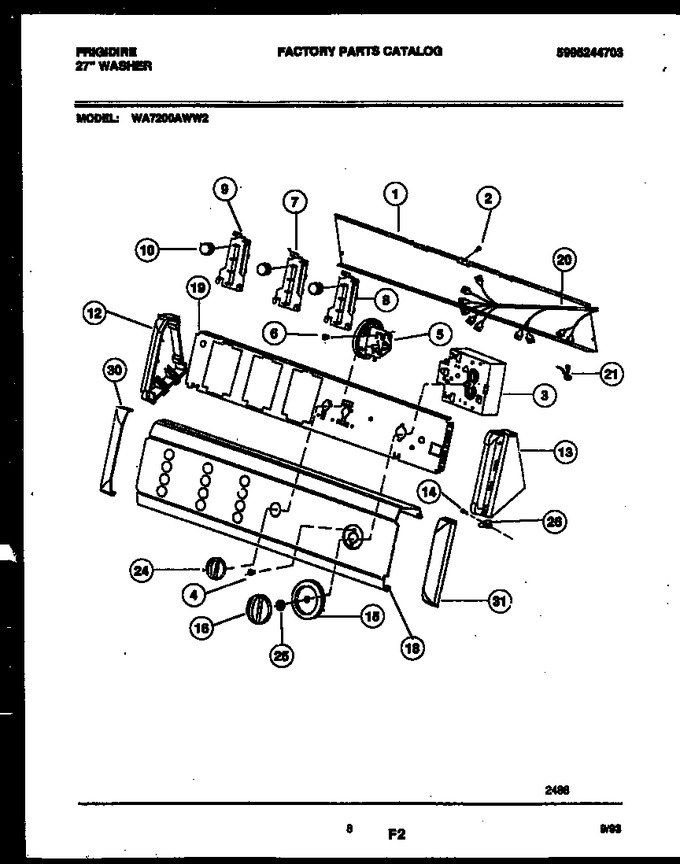

02 - Cabinet Parts
03 - Tub Detail
04 - Transmission Parts
05 - Console And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131141701 | Backsheet |
|
- | |||||
| 2 | 131052100 | Screw (4) |
|
- | |||||
| 3 | 5303271772 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047700 | Switch-pressure |
|
- | |||||
| 6 | 5303015671 | Screw |
|
- | |||||
| 7 | 131118100 | Switch-speed |
|
- | |||||
| 8 | 131169100 | Switch-option |
|
- | |||||
| 9 | 131047600 | Switch-temperature |
|
- | |||||
| 10 | 131141202 | Pushbutton-almond (12) |
|
- | |||||
| 12 | 131122712 | End Cap Lh-almond |
|
- | |||||
| 13 | 131122702 | End Cap-rh-almond |
|
- | |||||
| 14 | 08015832 | Screw |
|
- | |||||
| 15 | 131140702 | Dial-almond |
|
- | |||||
| 16 | 131140602 | Knob-timer-almond |
|
- | |||||
| 18 | 131173300 | Panel-control-almond |
|
- | |||||
| 19 | 131157803 | Bracket - Control |
|
- | |||||
| 20 | 131169000 | Harness |
|
- | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 24 | 131141102 | Knob-rotary-almond |
|
- | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 5300503065 | Clip |
|
$ 6.09 | |||||
| 30 | 131122612 | Cover, Cap, Lh, Almond |
|
- | |||||
| 31 | 131122602 | Cover, Cap, Rh, Almond |
|
- | |||||
| 21A | 5303281035 | Screw-grd-cabinet (non-illustrated) |
|
- |
