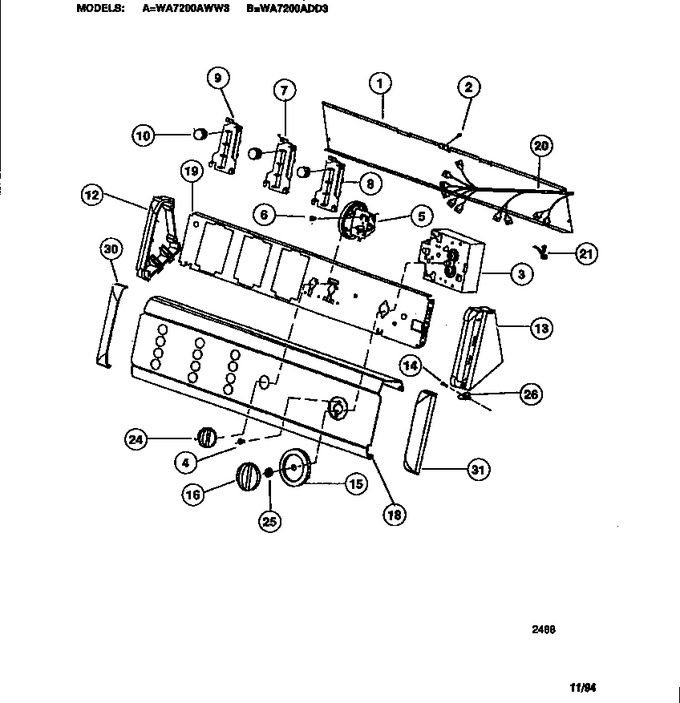

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131141701		Backsheet		Appelez-nous	-
2	131052100		Screw (4)		Appelez-nous	-
3	5303271772		Timer		Appelez-nous	-
4	3161188		Screw		Appelez-nous	-
5	131047700		Switch-pressure		Appelez-nous	-
6	5303015671		Screw		Appelez-nous	-
7	131118100		Switch-speed		Appelez-nous	-
8	131169100		Switch-option		Appelez-nous	-
9	131047600		Switch-tempature		Appelez-nous	-
10	131141201		Pushbutton-white (12)		Appelez-nous	-
12	131122711		End Cap-l.h.-white				$ 58.38
13	131122701		End Cap-r.h.-white				$ 53.29
14	08015832		Screw		Appelez-nous	-
15	131140701		Dial-white				$ 38.76
16	131140601		Knob-timer-white				$ 65.21
18	131173100		Panel-control-white		Appelez-nous	-
19	131157803		Bracket - Control		Appelez-nous	-
20	131169000		Harness		Appelez-nous	-
21	08001689		Screw		Appelez-nous	-
21	5303281035		Screw-grd-cabinet (non-illustrated)		Appelez-nous	-
24	131141101		Knob-rotary-white		Appelez-nous	-
25	5308015493		Spacer-timer Shaft				$ 14.36
26	5300503065		Clip				$ 6.09
30	131122611		Cover-cap-lh-white				$ 42.21
31	131122601		Cover-cap-rh-white				$ 47.20

    View Diagram in Separate Window       Print Part List
