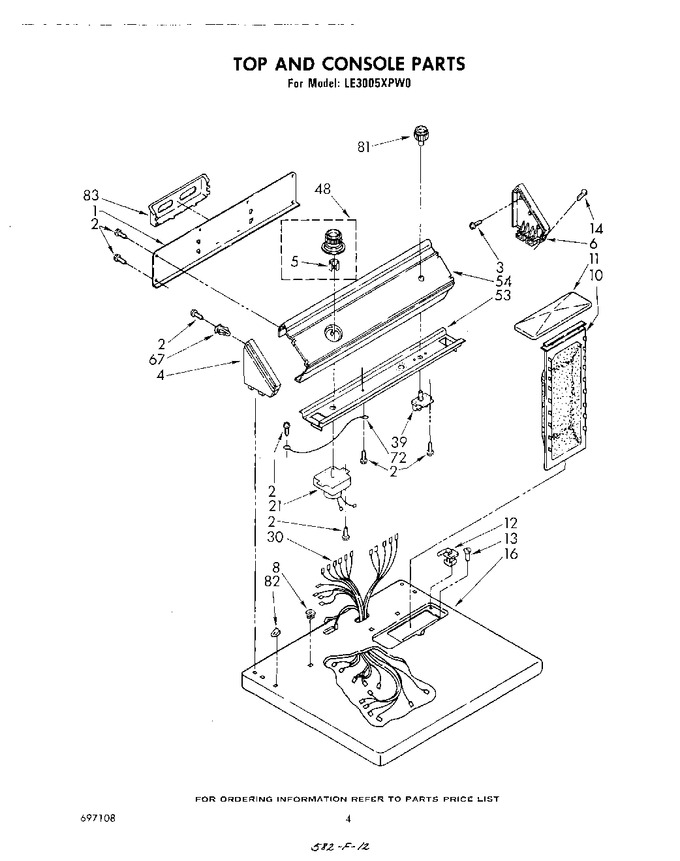

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	63790		Cap, End (l.h.) (white)		Appelez-nous	-
5	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
6	63796		Cap, End (r.h.) (white)		Appelez-nous	-
8	358472		Stop, Push-in (2)		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 37.72
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 6.95
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	WP388326		Screw, 8-18 X 1   (Replaces: 64211)				$ 7.30
16	695507		Top (white)		Appelez-nous	-
21	687952		Timer Assembly, 60 Hz.		Appelez-nous	-
30	695356		Harness		Appelez-nous	-
39	346364		Switch, Push-to-start (alt.)		Appelez-nous	-
39	692021		Switch, Push-to-start (alt.)		Appelez-nous	-
39	660936		Switch, Push-to-start		Appelez-nous	-
48	695556		Timer Knob Assembly		Appelez-nous	-
53	386627		Bracket, Control		Appelez-nous	-
54	695959		Panel, Control		Appelez-nous	-
67	689559		Clip, Push-on (4)		Appelez-nous	-
72	690853		Wire, Console Ground		Appelez-nous	-
81	696075		Knob, Push-to-start		Appelez-nous	-
82	358473		Nut, Push-in (2)				$ 5.84
83	63020		Rack, Literature				$ 30.32
	LIT696234		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	LIT677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT677971		Ice Maker (in Refrigerator)		Appelez-nous	-
	LIT677967		Dishwasher		Appelez-nous	-
	677821		Compactor   (Replaces: LIT677821)				$ 31.51
	LIT677818		Dryer		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT697108		List, Parts		Appelez-nous	-
	LIT693849		Guide, Dryer		Appelez-nous	-
	LIT696757		Guide, Use & Care		Appelez-nous	-
