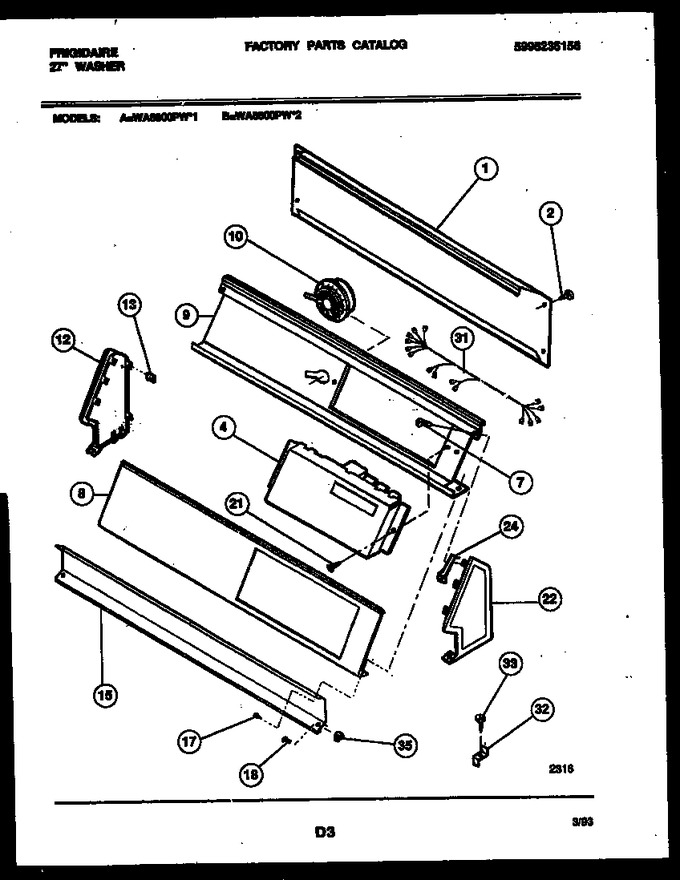

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201322 | Backsheet |
|
- | |||||
| 2 | 5303015671 | Screw (4) |
|
- | |||||
| 4 | 5303279271 | Control-washer |
|
- | |||||
| 7 | 08010789 | Screw |
|
- | |||||
| 8 | 5303279276 | Panel-control |
|
- | |||||
| 9 | 5303279279 | Bracket-controls |
|
- | |||||
| 10 | 5303293375 | Switch-pressure |
|
$ 144.22 | |||||
| 12 | 5303270198 | End Cap-lh |
|
- | |||||
| 13 | 5308014350 | Clip |
|
- | |||||
| 15 | 5303279333 | Trimplate-lower |
|
- | |||||
| 17 | 5303279341 | Screw |
|
- | |||||
| 18 | 5303279343 | Screw |
|
- | |||||
| 21 | 5303161233 | Screw |
|
- | |||||
| 22 | 5303270200 | End Cap-rh |
|
- | |||||
| 24 | 08014349 | Ground Strap |
|
- | |||||
| 31 | 5303293376 | Harness |
|
- | |||||
| 32 | 5379171000 | Terminal |
|
- | |||||
| 33 | 08001689 | Screw |
|
- | |||||
| 35 | 5300503065 | Nut |
|
$ 6.09 | |||||
| 31A | 5303285493 | Clip - Harness (non-illustrated) |
|
- |
