SELECT A DIAGRAM
New Model Search:

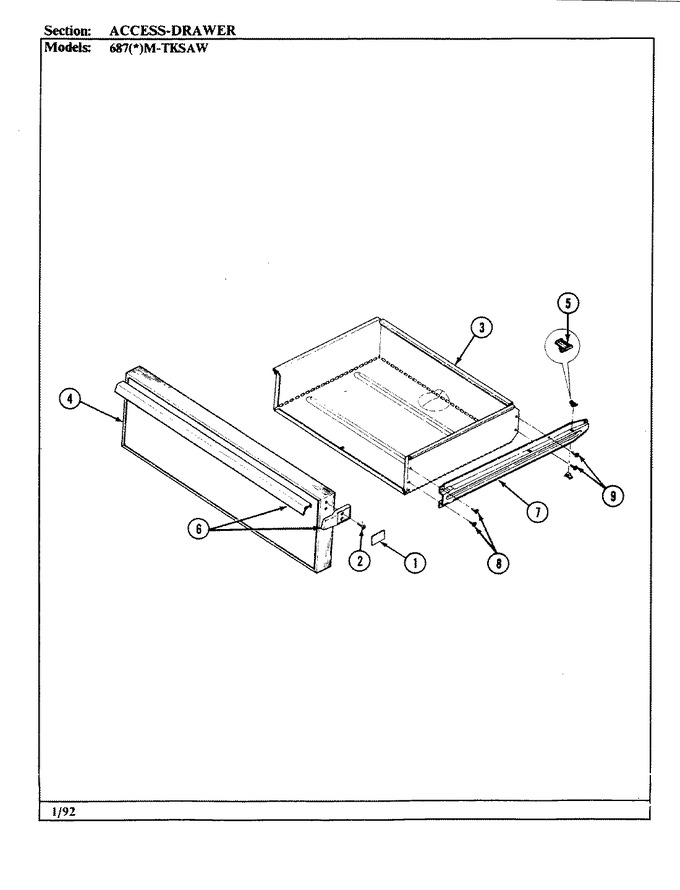

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7728P068-60 | Insert, Handle (chrome) | 1 |
|
- | ||||
| 2 | 7101P305-60 | Screw | 1 |
|
- | ||||
| 3 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 4 | 5425A021-74K | Drawer, Service |
|
- | |||||
| 5 | 8016P009-60 | Glide, Drawer | 1 |
|
- | ||||
| 5 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 6 | 7701P032-60 | Handle, Door Almd |
|
- | |||||
| 7 | 3406F026-80 | Runner, Inner | 1 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 9 | 7101P287-60 | Screw, Metal Grounding | 1 |
|
$ 12.03 |
