1	5304432497		Cabinet,wrapper		Appelez-nous	-
6	309640207		Louver Assy,includes 7,8,9		Appelez-nous	-
7	309638002		Link,vertical Louver ,with Handle		Appelez-nous	-
8	309639303		Louver,horizontal		Appelez-nous	-
9	309342001		Louver,vertical ,(6)		Appelez-nous	-
12	309343501		Filter-air,7.12 X 17.31 ,no Frame				$ 49.82

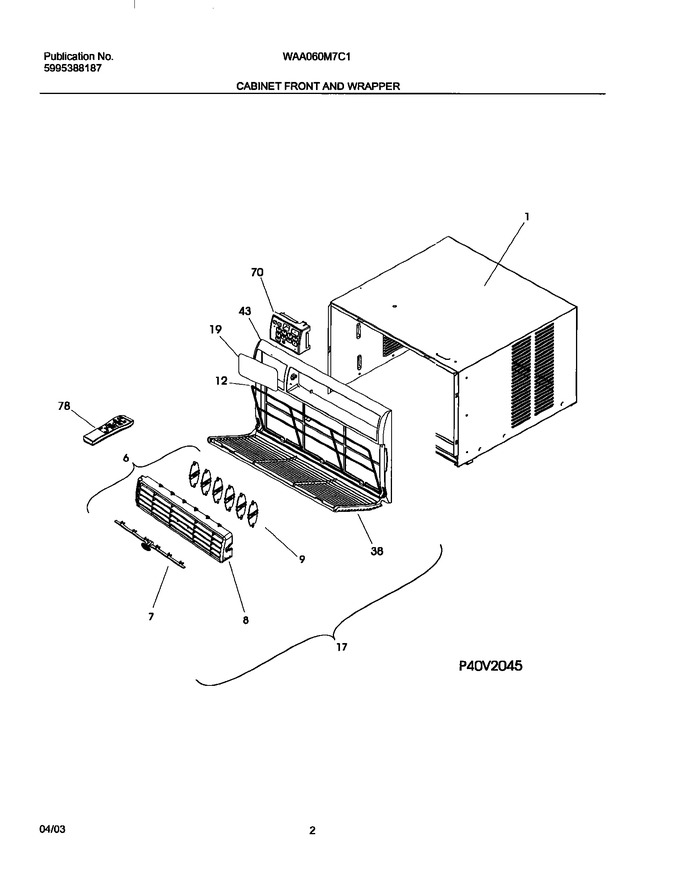

17	309640107		Front Assembly,4 Way Panel ,w/8,9,12,38,43		Appelez-nous	-
19	309359910		Overlay,control		Appelez-nous	-
38	309646301		Panel,cabinet Front				$ 50.77
43	309646401		Frame,cabinet Front				$ 77.70
70	309369501		Enclosure,control Mount		Appelez-nous	-
F78	309342609		Remote Control,transmitter ,with Batteries		Appelez-nous	-
NI	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
