02 - Cabinet Parts
03 - Air Handling Parts
04 - System Parts
New Model Search:

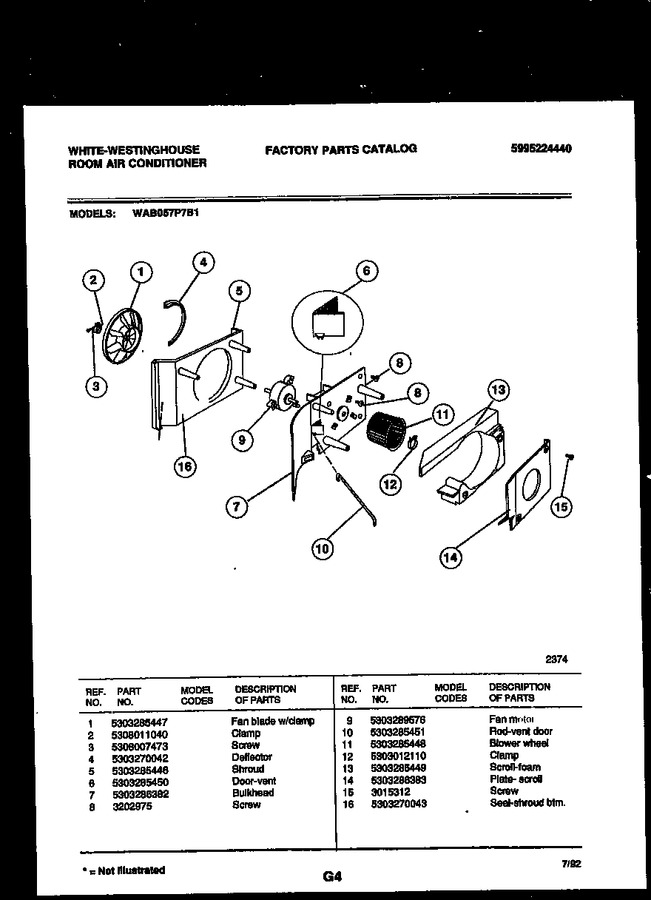

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303285447 | Fan Blade W/ Clamp |
|
- | |||||
| 2 | 5308011040 | Clamp |
|
- | |||||
| 3 | 5308007473 | Screw |
|
- | |||||
| 4 | 5303270042 | Deflector |
|
- | |||||
| 5 | 5303285446 | Shroud |
|
- | |||||
| 6 | 5303285450 | Door, Vent |
|
- | |||||
| 7 | 5303286382 | Bulkhead |
|
- | |||||
| 8 | 3202975 | Screw |
|
- | |||||
| 9 | 5303289576 | Fan Motor |
|
- | |||||
| 10 | 5303285451 | Rod, Vent Door |
|
- | |||||
| 11 | 5303285448 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp |
|
$ 8.14 | |||||
| 13 | 5303285449 | Scroll, Foam |
|
- | |||||
| 14 | 5303286383 | Plate, Scroll |
|
- | |||||
| 15 | 3015312 | Screw |
|
- | |||||
| 16 | 5303270043 | Seal-shroud Btm |
|
- |
