SELECT A DIAGRAM

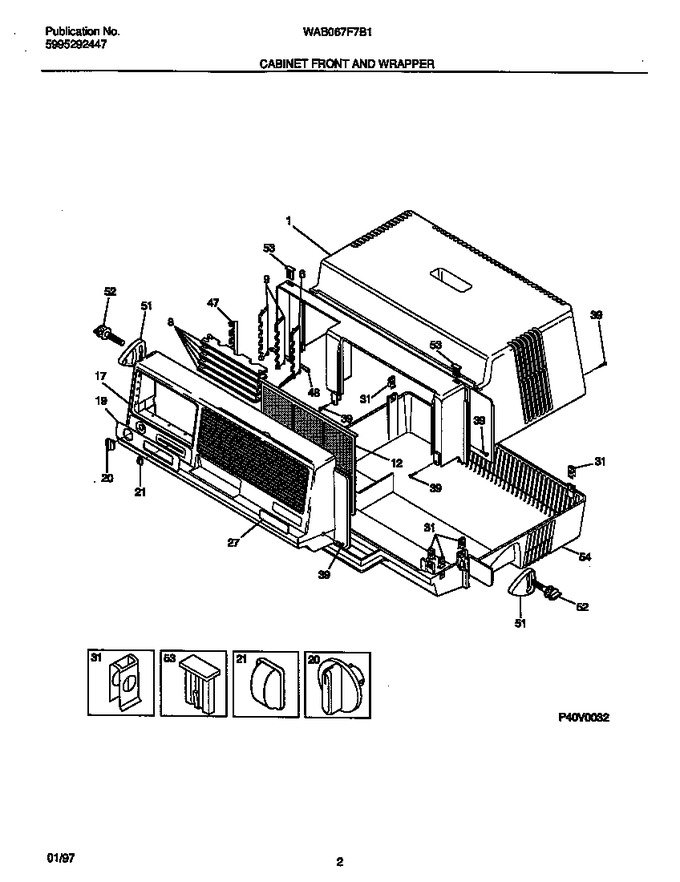

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303307802		Wrapper-upper		Appelez-nous	-
6	5303289530		Louver W/ Handle		Appelez-nous	-
8	5303289531		Louver		Appelez-nous	-
9	5303289529		Louver-vertical (2)		Appelez-nous	-
12	5303285479		Filter		Appelez-nous	-
17	5303322571		Front, Cabinet, Complete		Appelez-nous	-
19	5303321506		Dial Plate		Appelez-nous	-
20	309306801		Knob-control,(2)		Appelez-nous	-
21	5303303114		Knob-slide		Appelez-nous	-
27	5303322562		Nameplate,w/w		Appelez-nous	-
31	5303286163		Clip, U-type, No. 8		Appelez-nous	-
39	134178901		Screw, Truss Head, 8-18 X 0.625, Front, (2), Square Driv   (Replaces: 5303293767)				$ 14.89
47	5303285477		Link-louver Horiz		Appelez-nous	-
48	5303285476		Link-louver Vertical		Appelez-nous	-
51	5303322433		Knob-leveling		Appelez-nous	-
52	5303322432		Screw-knob,level		Appelez-nous	-
53	5303289568		Button, Lock, Front, (2)		Appelez-nous	-
54	5303321503		Wrapper-lower		Appelez-nous	-
