01 - Cover
02 - Cab Frnt,wrapper

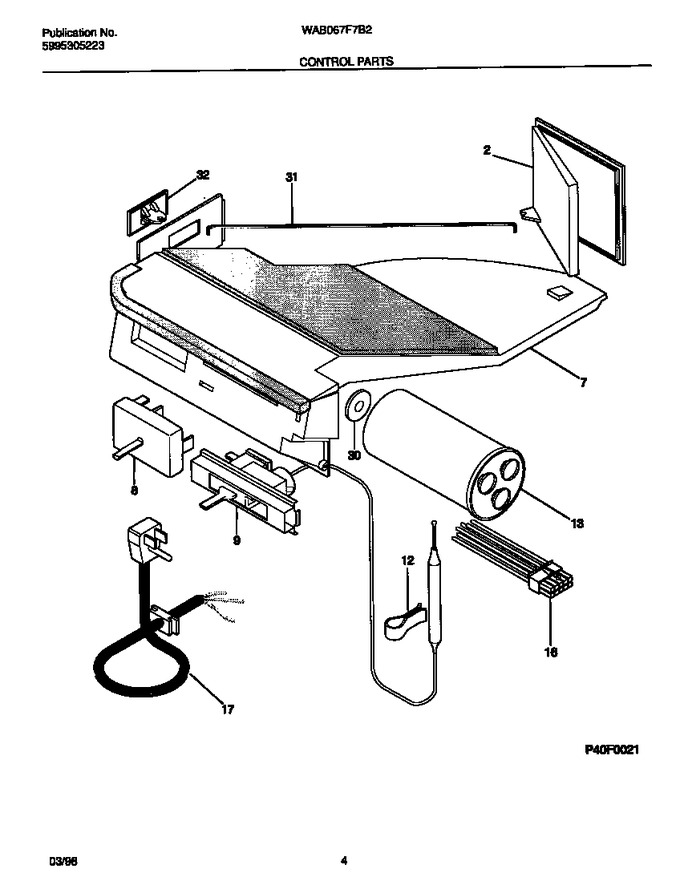

03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303285450 | Door, Vent |
|
- | |||||
| 7 | 5303285458 | Panel Control |
|
- | |||||
| 8 | 5303318634 | Switch-selector |
|
- | |||||
| 9 | 5303285460 | Control-temperature |
|
- | |||||
| 12 | 5303303127 | Clip-control Bulb |
|
- | |||||
| 13 | 5303295749 | Capacitor |
|
- | |||||
| 16 | 5303285462 | Wiring Harness |
|
- | |||||
| 16 | 5303295500 | Wiring Harness |
|
- | |||||
| 17 | 5303285461 | Cord-electric Power |
|
- | |||||
| 30 | 5303270092 | Nut-capacitor |
|
- | |||||
| 31 | 5303285451 | Rod, Vent Door |
|
- | |||||
| 32 | 5303285452 | Knob-vent Door |
|
- | |||||
| 39 | 134178901 | Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive (Replaces: 5303293767) |
|
$ 14.89 |
