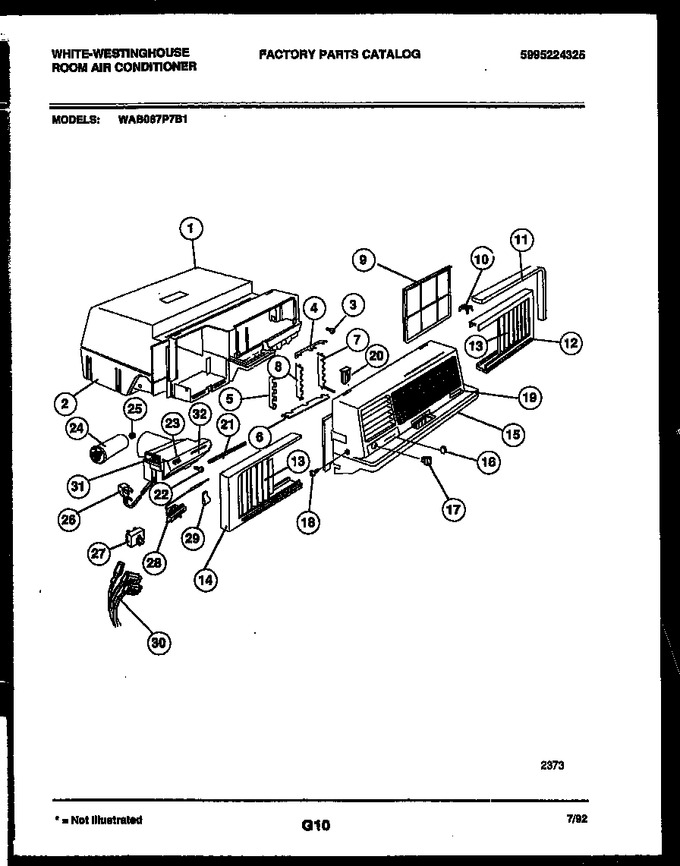

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303286208		Wrapper-upper		Appelez-nous	-
2	5303925112		Wrapper-lower W/insulation		Appelez-nous	-
3	3015312		Screw-wrapper (17)		Appelez-nous	-
4	5303285477		Link-top		Appelez-nous	-
5	5303285476		Link-vertical		Appelez-nous	-
6	5303285475		Louver (5)		Appelez-nous	-
7	5303285474		Louver W/handle (1)		Appelez-nous	-
8	5303285473		Louver-vertical (2)		Appelez-nous	-
9	5303285479		Filter		Appelez-nous	-
10	5303285468		Clip		Appelez-nous	-
11	5303285464		Seal-frame Rh-lh		Appelez-nous	-
12	5303285499		Frame-less Accordian Rh		Appelez-nous	-
13	5303285500		Accordian Closure		Appelez-nous	-
14	5303285498		Frame, Less Accordian Lh		Appelez-nous	-
15	5303289573		Front Complete (does Not Include Filter)		Appelez-nous	-
16	5303285472		Knob-slide		Appelez-nous	-
17	5303285471		Knob-control		Appelez-nous	-
18	5303271346		Screw-front		Appelez-nous	-
19	5303289574		Nameplate		Appelez-nous	-
20	5303285480		Button Lock-frame		Appelez-nous	-
21	5303270043		Seal (cut To Size)		Appelez-nous	-
22	3015312		Screw		Appelez-nous	-
23	5303285458		Panel Control		Appelez-nous	-
24	5303285463		Capacitor-35-5/370v		Appelez-nous	-
25	5303270092		Nut		Appelez-nous	-
26	5303285461		Power Cord		Appelez-nous	-
27	5303285459		Switch		Appelez-nous	-
28	5303285460		Control-temp		Appelez-nous	-
29	5303286381		Clip		Appelez-nous	-
30	5303285462		Harness		Appelez-nous	-
31	5303285452		Knob-vent		Appelez-nous	-
32	5303285469		Dial Plate		Appelez-nous	-
*63475	5303211056		Bracket-window Lock		Appelez-nous	-
*63475	3002603		Gasket-window Sash		Appelez-nous	-
*63476	5303289575		Nameplate-rear		Appelez-nous	-
