01 - Cover
02 - Cabinet Front, Wrapper
03 - Controls
04 - Air Handling
05 - System
06 - Window Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

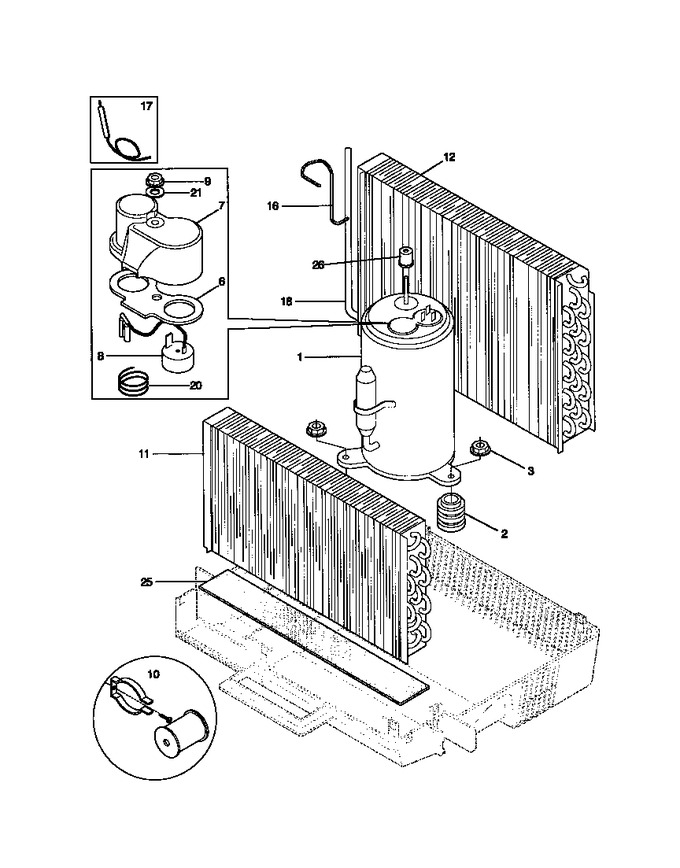

| 1 | 5303307055 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor |
|
- | |||||
| 3 | 5303286164 | Nut-compressor |
|
- | |||||
| 4 | 309101401 | Screw, 8-18 X 3/8, (3) |
|
- | |||||
| 6 | 5303002035 | Gasket-cover |
|
- | |||||
| 7 | 3002034 | Cover-terminal |
|
- | |||||
| 8 | 5303307041 | Overload |
|
- | |||||
| 9 | 5303301734 | Nut-cover |
|
- | |||||
| 10 | 5303201723 | Start Kit |
|
- | |||||
| 11 | 5303295748 | Evaporator |
|
- | |||||
| 12 | 309602701 | Condenser |
|
- | |||||
| 16 | 5308017120 | Capillary Tube, Cut To 45`` |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 20 | 5303002036 | Spring-overload |
|
- | |||||
| 21 | 5303295516 | Washer-cover |
|
- | |||||
| 25 | 5303286385 | Insulation, Evap. Bottom |
|
- | |||||
| 26 | 5303307790 | Grommet-compr. Top |
|
- |
