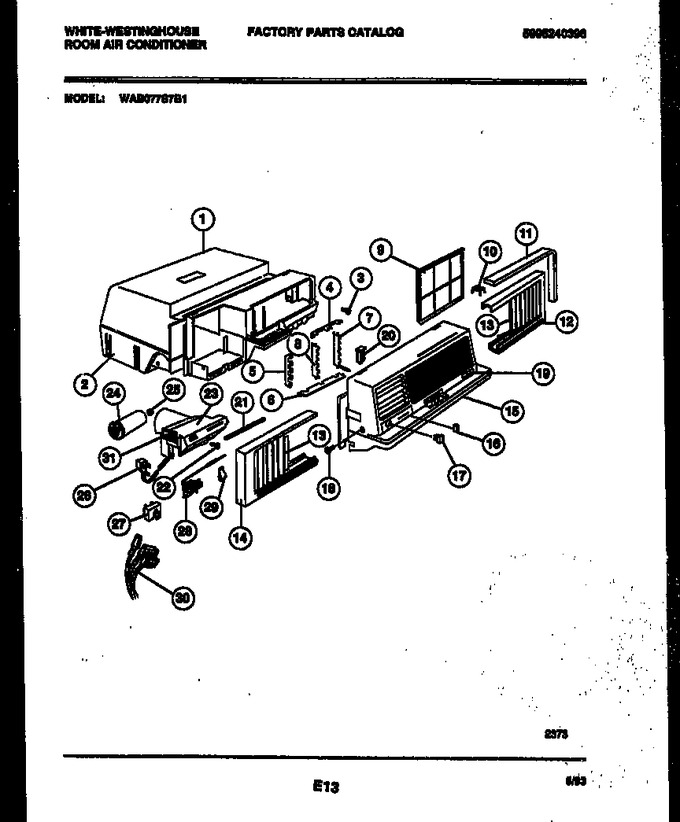

02 - Cabinet Parts


03 - Air Handling Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925112		Wrapper-top		Appelez-nous	-
2	5303286208		Wrapper-lower With Insulation		Appelez-nous	-
3	134178901		Screw-wrapper (7)   (Replaces: 5303293767)				$ 14.89
4	5303285477		Link-top		Appelez-nous	-
5	5303285476		Link-vertical		Appelez-nous	-
6	5303285475		Louver (5)		Appelez-nous	-
7	5303285474		Louver W/handle (1)		Appelez-nous	-
8	5303285473		Louver-vertical (2)		Appelez-nous	-
9	5303285479		Filter		Appelez-nous	-
10	5303285468		Clip		Appelez-nous	-
11	5303285464		Seal-frame Rh-lh		Appelez-nous	-
12	5303285499		Frame-less Accordian Rh		Appelez-nous	-
13	5303285500		Accordian Closure		Appelez-nous	-
14	5303285498		Frame, Less Accordian Lh		Appelez-nous	-
15	5303289573		Front Complete (does Not Include Filter)		Appelez-nous	-
16	5303285472		Knob-slide		Appelez-nous	-
17	5303285471		Knob-control		Appelez-nous	-
18	134178901		Screw,front   (Replaces: 5303293767)				$ 14.89
19	5303289574		Nameplate		Appelez-nous	-
20	5303285480		Button Lock-frame		Appelez-nous	-
21	5303270043		Seal (cut To Size)		Appelez-nous	-
22	134178901		Screw   (Replaces: 5303293767)				$ 14.89
23	5303285458		Panel Control		Appelez-nous	-
24	5303295749		Capacitor-35-10/370v		Appelez-nous	-
25	5303270092		Nut		Appelez-nous	-
26	5303285461		Power Cord		Appelez-nous	-
27	5303285459		Switch		Appelez-nous	-
28	5303285460		Control-temperature		Appelez-nous	-
29	5303286381		Clip		Appelez-nous	-
30	5303285462		Harness-control Panel		Appelez-nous	-
31	5303285452		Knob-vent		Appelez-nous	-
32	5303293766		Dial Plate		Appelez-nous	-
*76620	3002603		Gasket-window Sash (does Not Include Filter)		Appelez-nous	-
*76621	5303295500		Harness-unit Wiring		Appelez-nous	-
*76621	5303211056		Bracket-window Lock		Appelez-nous	-
*76621	5303295750		Screw-bracket & Window Mounting		Appelez-nous	-
*76621	5303289575		Nameplate-rear		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
