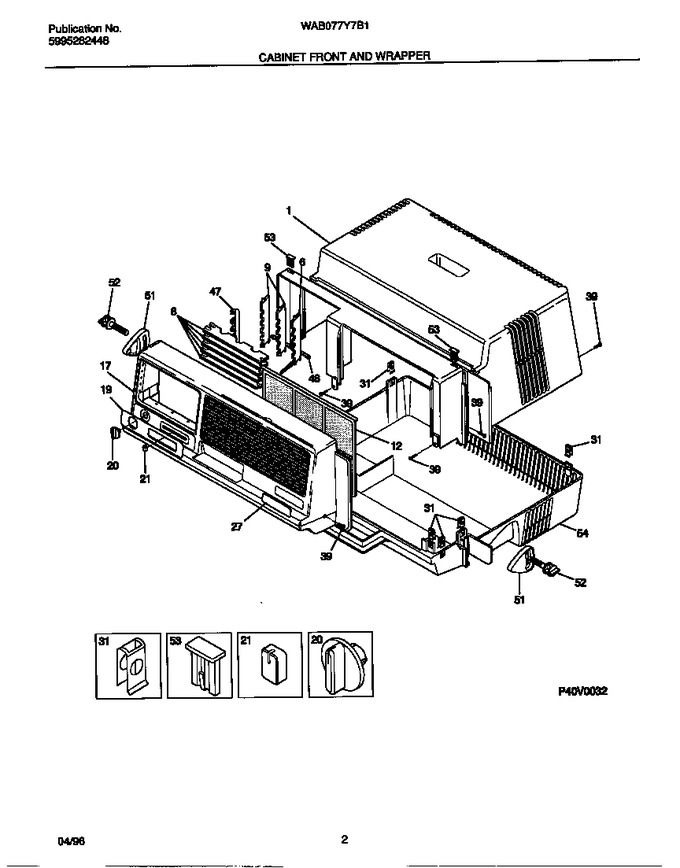

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303307802		Wrapper-upper		Appelez-nous	-
6	5303285474		Louver W/ Handle		Appelez-nous	-
8	5303285475		Louver		Appelez-nous	-
9	5303285473		Louver-vertical (2)		Appelez-nous	-
12	5303285479		Filter		Appelez-nous	-
17	5303289573		Front W/ Louvers		Appelez-nous	-
19	5303285469		Dial Plate		Appelez-nous	-
20	5303285471		Knob-control		Appelez-nous	-
21	5303285472		Knob-slide		Appelez-nous	-
27	5303289574		Nameplate		Appelez-nous	-
31	5303286163		Clip, U-type, No. 8		Appelez-nous	-
39	134178901		Screw, Truss Head, 8-18 X 0.625, Front, (2), Square Driv   (Replaces: 5303293767)				$ 14.89
47	5303285477		Link-louver Horiz		Appelez-nous	-
48	5303285476		Link-louver Vertical		Appelez-nous	-
51	5303285465		Knob-leveling		Appelez-nous	-
52	5303285466		Screw-knob, Level		Appelez-nous	-
53	5303285480		Button, Lock, Front, (4)		Appelez-nous	-
54	5303303209		Wrapper-lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
