SELECT A DIAGRAM

02 - Cabinet Parts


03 - Air Handling Parts


04 - Electrical Parts


05 - Unit Parts

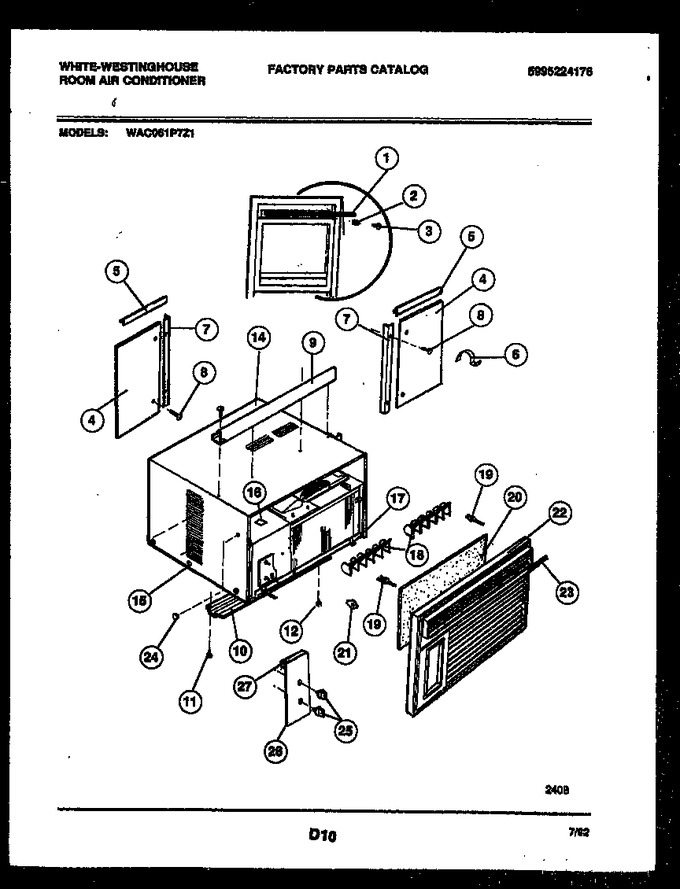

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3002603		Seal-window		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
3	3002803		Screw		Appelez-nous	-
4	5303272872		Panel (cut To Size)		Appelez-nous	-
5	08007464		Gasket-panel		Appelez-nous	-
6	5303001821		Clip-panel		Appelez-nous	-
7	08007480		Rail-side		Appelez-nous	-
8	3015312		Screw		Appelez-nous	-
9	5303272871		Rail-top		Appelez-nous	-
10	5303270072		Rail Bottom		Appelez-nous	-
11	3001806		Screw		Appelez-nous	-
12	08016080		Screw-level		Appelez-nous	-
13	5303272873		Brace-top		Appelez-nous	-
14	5303270060		Wrapper		Appelez-nous	-
15	3015312		Screw-wrapper		Appelez-nous	-
16	08010928		Nut-front		Appelez-nous	-
17	5303001784		Clip-front To Base		Appelez-nous	-
18	08014228		Louver W/ Link		Appelez-nous	-
19	08013699		Handle		Appelez-nous	-
20	3016117		Filter		Appelez-nous	-
21	3203495		Clip-filter		Appelez-nous	-
22	5303271343		Front Complete (does Not Include Filter & Clip)		Appelez-nous	-
23	5303271344		Insert Mullion		Appelez-nous	-
24	5303271346		Screw-front		Appelez-nous	-
25	5300331902		Knob Control		Appelez-nous	-
26	5303289525		Dial Plate		Appelez-nous	-
27	5303001861		Seal		Appelez-nous	-
12A	3201594		Strap (4) (non-illustrated)		Appelez-nous	-
12B	5308017206		Speed Nut (4) (non-illustrated)		Appelez-nous	-
12C	5308002974		Screw (4) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
