02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

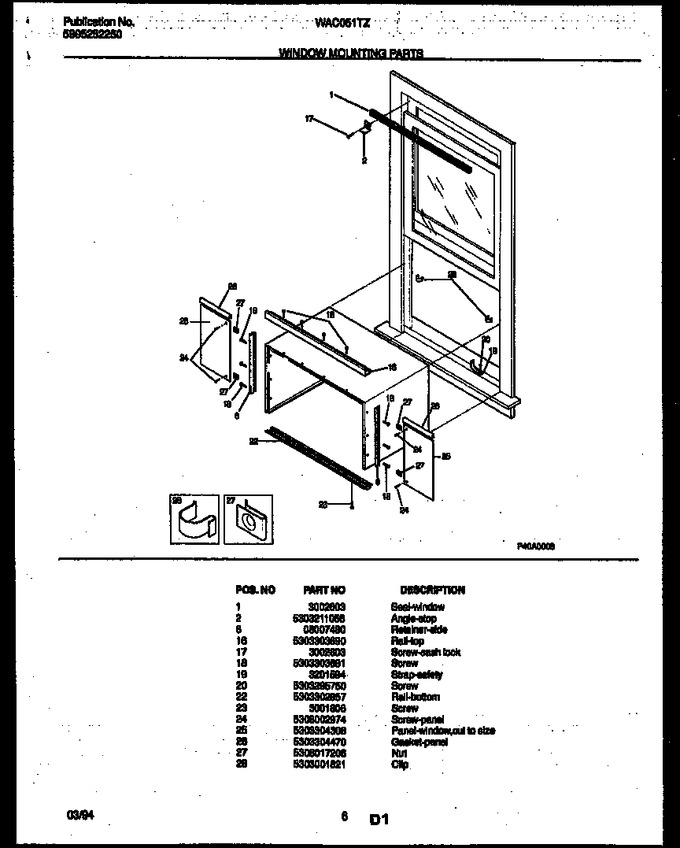

| 1 | 3002603 | Seal-window |
|
- | |||||
| 2 | 5303211056 | Angle-stop |
|
- | |||||
| 6 | 08007480 | Retainer-side |
|
- | |||||
| 16 | 5303303690 | Rail-top |
|
- | |||||
| 17 | 3002803 | Screw - Sash Lock |
|
- | |||||
| 18 | 5303303691 | Screw |
|
- | |||||
| 19 | 3201594 | Strap-safety |
|
- | |||||
| 20 | 5303295750 | Screw |
|
- | |||||
| 22 | 5303302857 | Rail-bottom |
|
- | |||||
| 23 | 3001806 | Screw |
|
- | |||||
| 24 | 5308002974 | Screw-panel |
|
- | |||||
| 25 | 5303304308 | Panel-window, Cut To Size |
|
- | |||||
| 26 | 5303304470 | Gasket-panel |
|
- | |||||
| 27 | 5308017206 | Nut |
|
- | |||||
| 28 | 5303001821 | Clip |
|
- |
