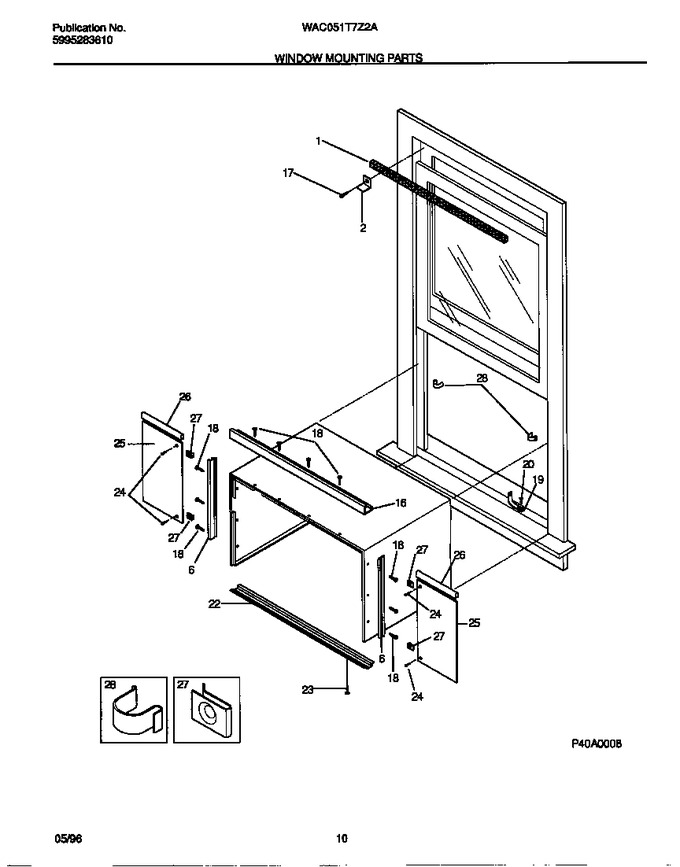

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3002603		Seal, Frame, Top		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
6	08007480		Retainer-side		Appelez-nous	-
16	5303303690		Rail-top		Appelez-nous	-
17	3002803		Screw-wood		Appelez-nous	-
18	5303303691		Screw, 8-18ab X 0.38		Appelez-nous	-
19	3201594		Strap-safety		Appelez-nous	-
20	5303295750		Screw, 8-18 X 0.75		Appelez-nous	-
22	5303302857		Retainer, Bottom		Appelez-nous	-
23	3001806		Screw		Appelez-nous	-
24	5308002974		Screw		Appelez-nous	-
25	5303304308		Panel-window, Cut To Size		Appelez-nous	-
26	5303304470		Gasket-panel		Appelez-nous	-
27	5308017206		Nut, (4)		Appelez-nous	-
28	5303001821		Clip, (2), Panel		Appelez-nous	-
