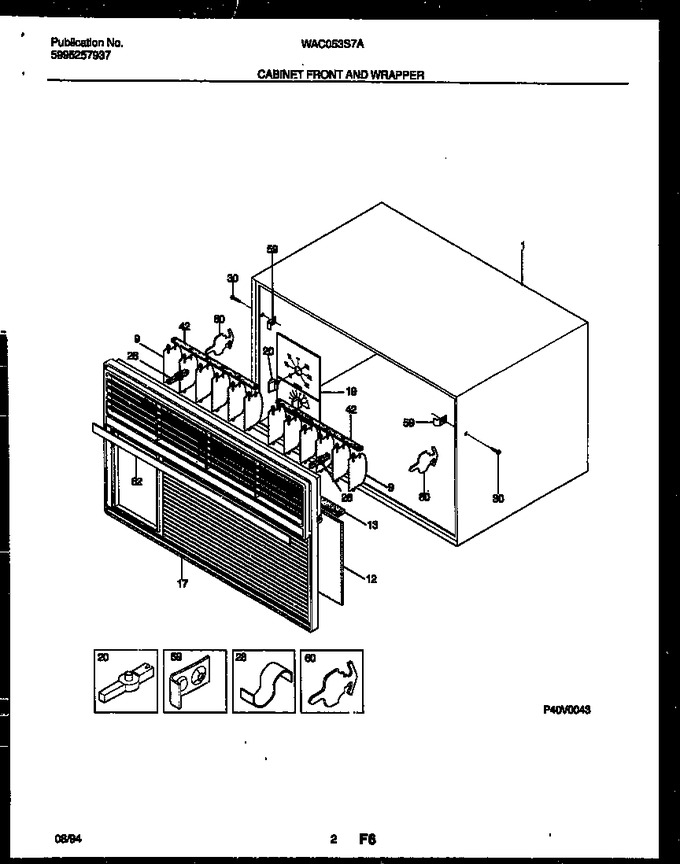

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 9 | 5303305994 | Louver-vertical, (6) |
|
- | |||||
| 12 | 3016117 | Filter |
|
- | |||||
| 13 | 08007482 | Seal-mullion |
|
- | |||||
| 17 | 5303300120 | Front Complete |
|
- | |||||
| 19 | 5303289325 | Dial Plate |
|
- | |||||
| 20 | 5300331902 | Knob Control |
|
- | |||||
| 26 | 5303293807 | Handle |
|
- | |||||
| 28 | 5303001784 | Clip-front Base |
|
- | |||||
| 30 | 5303271346 | Screw-front |
|
- | |||||
| 42 | 5303293806 | Louvers W/ Link |
|
- | |||||
| 59 | 08010928 | Nut - Front Lock |
|
- | |||||
| 60 | 3203495 | Clip-filter, (2) |
|
- | |||||
| 62 | 5303300121 | Insert Mullion |
|
- |
