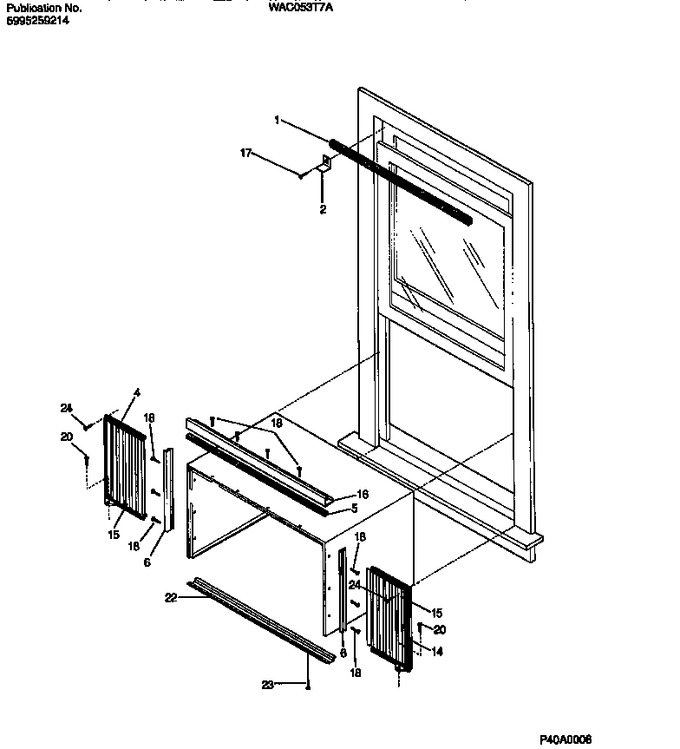

06 - Window Mounts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3002603 | Seal-window |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5303302860 | Frame, Lh |
|
- | |||||
| 5 | 08016226 | Seal, Top Rail |
|
- | |||||
| 6 | 5303303795 | Retainer-accordian |
|
- | |||||
| 14 | 5303302861 | Frame, Rh |
|
- | |||||
| 15 | 5303302862 | Accordian |
|
- | |||||
| 16 | 5303302859 | Rail-top |
|
- | |||||
| 17 | 3002803 | Screw - Sash Lock |
|
- | |||||
| 20 | 5303295750 | Screw |
|
- | |||||
| 22 | 5303302857 | Rail-bottom |
|
- | |||||
| 23 | 3001806 | Screw |
|
- | |||||
| 24 | 5308002974 | Screw |
|
- | |||||
| *10601 | 5303303809 | Instruction For Installation |
|
- |
