01 - Room Air Conditioner

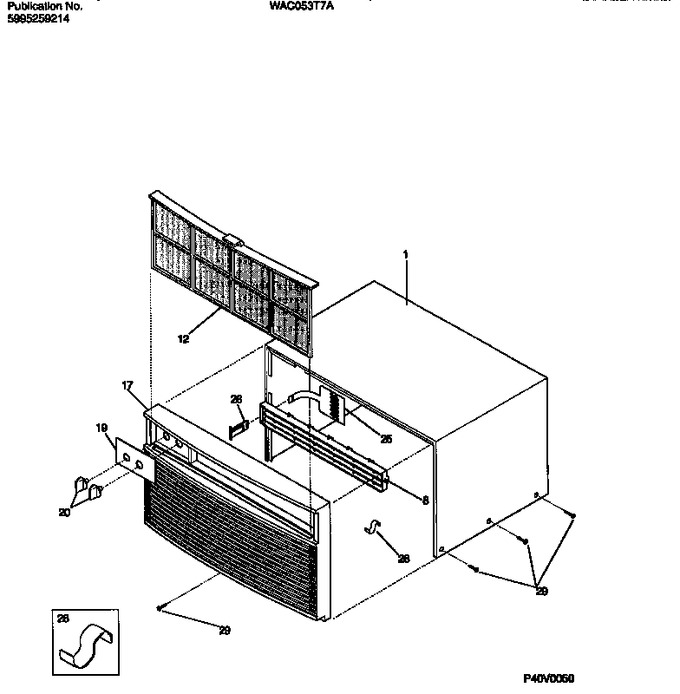

02 - Cabinet Front And Wrapper
03 - Controls
04 - Air Handling
05 - Compressor
06 - Window Mounts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303302856 | Wrapper |
|
- | |||||
| 8 | 309603801 | Louver |
|
- | |||||
| 12 | 5303302866 | Filter |
|
- | |||||
| 17 | 309603502 | Front Complete |
|
- | |||||
| 19 | 5303302863 | Dial Plate |
|
- | |||||
| 20 | 5303302864 | Knob-control |
|
$ 52.82 | |||||
| 25 | 5303302867 | Vent Door |
|
- | |||||
| 26 | 309100502 | Handle-vent Door |
|
- | |||||
| 28 | 309100401 | Clip-front |
|
- | |||||
| 29 | 5303303691 | Screw |
|
- |
