New Model Search:

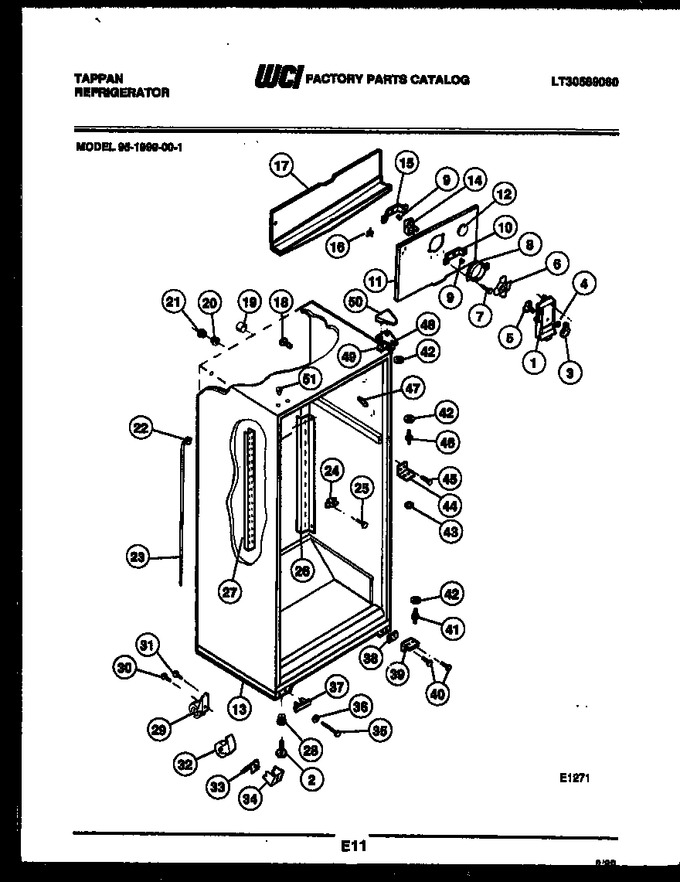

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001496 | Cover-fan |
|
- | |||||
| 2 | 3001301 | Screw-level (2) |
|
- | |||||
| 3 | 3001452 | Knob-damper Control |
|
- | |||||
| 4 | 3001028 | Push Nut |
|
- | |||||
| 5 | 3001331 | Damper |
|
- | |||||
| 6 | 3001215 | Fan Blade |
|
- | |||||
| 7 | 3001340 | Screw-fan Assly (2) |
|
- | |||||
| 8 | 3001217 | Orifice Ring |
|
- | |||||
| 9 | 3001223 | Bushing-fan Assy (2) |
|
- | |||||
| 10 | 3001226 | Bracket, Front |
|
- | |||||
| 11 | 3001503 | Cover-evaporator Coil |
|
- | |||||
| 12 | 3203044 | Plug-short Test Hole |
|
- | |||||
| 13 | 08010092 | Cabinet Base |
|
- | |||||
| 14 | G158289 | Motor-fan |
|
- | |||||
| 15 | 3001227 | Bracket, Rear |
|
- | |||||
| 16 | 3001225 | Bracket-connector |
|
- | |||||
| 17 | 3001470 | Drain Trough |
|
- | |||||
| 18 | 3001249 | Support, Coil Cover (2) |
|
- | |||||
| 19 | 3001198 | Tube-rubber (2) |
|
- | |||||
| 20 | 3001286 | Ferrule, Inner |
|
- | |||||
| 21 | 3001287 | Ferrule, Outer |
|
- | |||||
| 22 | 08009755 | Seal Ring-drain Tube |
|
- | |||||
| 23 | 3001458 | Drain Tube |
|
- | |||||
| 24 | 3001457 | Spout-drain Tube |
|
- | |||||
| 25 | 3001361 | Push Pin-spout (2) |
|
- | |||||
| 26 | 3001476 | Channel-rs & Ls |
|
- | |||||
| 28 | 3001412 | Nut-anchor (2) |
|
- | |||||
| 29 | 3001401 | Roller-rear (2) |
|
- | |||||
| 30 | 3001483 | Bolt 1/4-28 (2) |
|
- | |||||
| 31 | 3001343 | Screw 8-15 (2) |
|
- | |||||
| 32 | 3001400 | Roller-front (2) |
|
- | |||||
| 33 | 3001402 | Spring-roller Adjustment (2) |
|
- | |||||
| 34 | 3001406 | Support-roller (2) |
|
- | |||||
| 35 | 3001403 | Screw-roller Adjustment (2) |
|
- | |||||
| 36 | 3001404 | Washer-nylon (2) |
|
- | |||||
| 37 | 3001478 | Plug-hinge Hole |
|
- | |||||
| 38 | 3001323 | Shim-bottom Hinge |
|
- | |||||
| 39 | 3202834 | Bracket-bottom Hinge |
|
- | |||||
| 40 | 3001320 | Screw-hinge Mtg (2) |
|
- | |||||
| 41 | 3001321 | Pin-bottom Hinge |
|
- | |||||
| 42 | 08000007 | Washer-1/4 Nylon (3) |
|
- | |||||
| 43 | 3001038 | Washer-5/16 Nylon |
|
- | |||||
| 44 | 3001369 | Bracket-center Hinge |
|
- | |||||
| 45 | 3001368 | Screw-hinge Mtg (2) |
|
- | |||||
| 46 | 3001313 | Pin-center Hinge |
|
- | |||||
| 47 | 3202339 | Corner Trim-coffee |
|
- | |||||
| 48 | 3001298 | Hinge-top |
|
- | |||||
| 49 | 3001037 | Shim-top Hinge |
|
- | |||||
| 50 | 3001666 | Hinge Cover-coffee |
|
- | |||||
| 51 | 3001679 | Plug-coffee |
|
- | |||||
| *28184 | 08016571 | Plug-freezer Liner (2) |
|
- | |||||
| 11A | 08016566 | Screw |
|
- | |||||
| 11B | 0800126 | Nut- ``u`` Type (2) |
|
- | |||||
| 16A | 3001340 | Screw-bracket Mtg (non-illustrated) |
|
- | |||||
| 1A | 3001060 | Screw-cover Mtg (2) (non-illustrated) |
|
- | |||||
| 23A | 3001343 | Screw-tube Mtg (2) (non-illustrated) |
|
- | |||||
| 26A | 3001257 | Screw-channel (6) (non-illustrated) |
|
- | |||||
| 27A | 3015409 | Channel-center |
|
- | |||||
| 27A | 08016568 | Screw-channel (3) |
|
- | |||||
| 40A | 3007090 | Tapping Plate (2) (non-illustrated) |
|
- | |||||
| 48A | 3001479 | Screw-hinge Mtg (2) (non-illustrated) |
|
- | |||||
| 48B | 08012296 | Plate-tapping (2) (non-illustrated) |
|
- |
