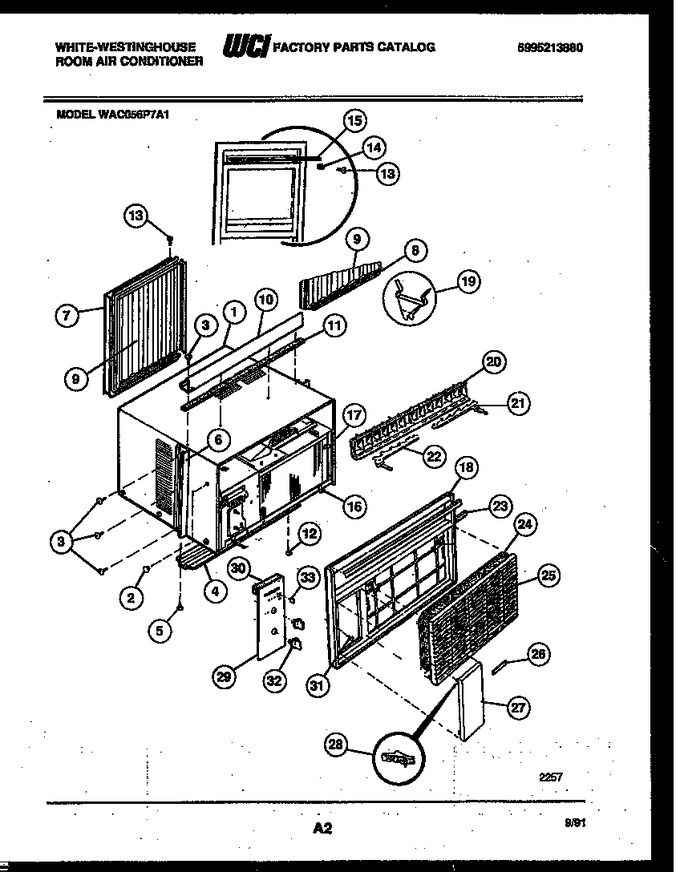

02 - Cabinet Parts


03 - Air Handling Parts


04 - Electrical Parts


05 - System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303270060		Wrapper		Appelez-nous	-
2	08016091		Plug Btn		Appelez-nous	-
3	3015312		Screw		Appelez-nous	-
4	5303270072		Rail Btm		Appelez-nous	-
5	3001806		Screw Rail		Appelez-nous	-
6	5303270073		Retainer		Appelez-nous	-
7	5303282370		Frame Ext Lh		Appelez-nous	-
8	5303282371		Frame Ext Rh		Appelez-nous	-
9	5303270075		Accordian Closure		Appelez-nous	-
10	5303270064		Rail Top		Appelez-nous	-
11	08016226		Seal		Appelez-nous	-
12	08016080		Screw-leveling		Appelez-nous	-
13	5308002974		Screw		Appelez-nous	-
14	5303211056		Angle Bracket		Appelez-nous	-
15	3002603		Seal-window		Appelez-nous	-
16	5303001784		Clip-front To Base		Appelez-nous	-
17	5308017124		Bracket Frame To Front		Appelez-nous	-
18	3016097		Front - Complete		Appelez-nous	-
19	5303001844		Clip		Appelez-nous	-
20	5303002457		Louver-w/ Link		Appelez-nous	-
21	5303002160		Link-rh		Appelez-nous	-
22	08017146		Link-lh		Appelez-nous	-
23	3016094		Seal-mullion		Appelez-nous	-
24	5303016095		Filter		Appelez-nous	-
25	3016096		Panel		Appelez-nous	-
26	5300138101		Nameplate		Appelez-nous	-
27	3201559		Door		Appelez-nous	-
28	5303017980		Hinge		Appelez-nous	-
29	5303280595		Dial Plate		Appelez-nous	-
30	5303001861		Seal		Appelez-nous	-
31	5308008175		Screw-front		Appelez-nous	-
32	5300331902		Knob-control (2)		Appelez-nous	-
33	5303002189		Knob-slide		Appelez-nous	-
