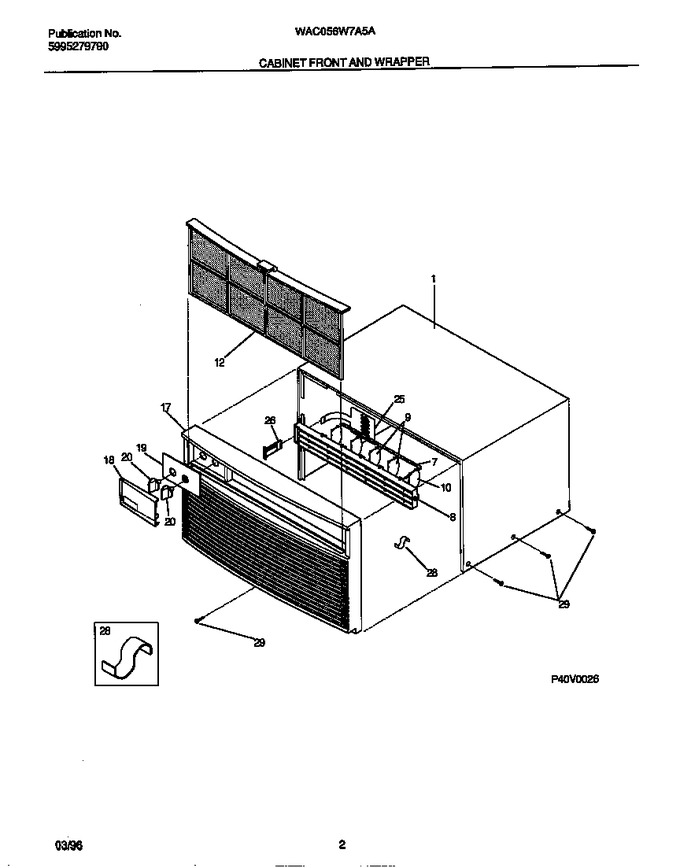

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303302856 | Cabinet, With Insulation |
|
- | |||||
| 7 | 5303303089 | Link-louver |
|
- | |||||
| 8 | 309603803 | Louver |
|
- | |||||
| 9 | 5303303087 | Louver-vertical, (4) |
|
- | |||||
| 10 | 5303303088 | Louver-vertical W/handle |
|
- | |||||
| 12 | 5303303842 | Filter |
|
- | |||||
| 17 | 309603508 | Front Complete |
|
- | |||||
| 18 | 309304601 | Door-front |
|
- | |||||
| 19 | 309613523 | Dial Plate |
|
- | |||||
| 20 | 5303302864 | Knob-control, (2) |
|
$ 52.82 | |||||
| 25 | 5303317476 | Vent Door |
|
- | |||||
| 26 | 309100501 | Handle-vent Door |
|
- | |||||
| 28 | 309100401 | Clip,cabinet Front |
|
- | |||||
| 29 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- |
