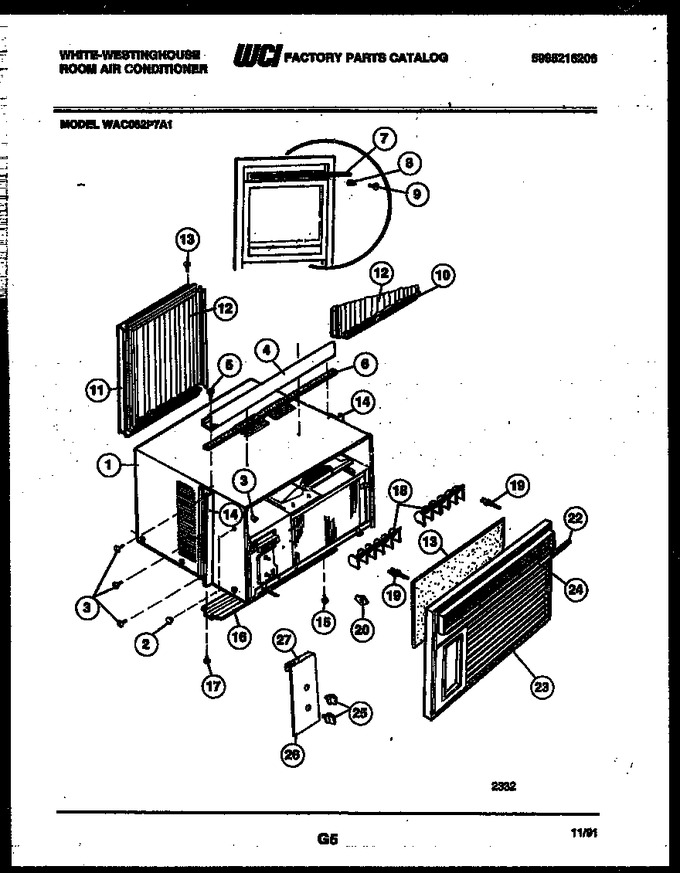

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 5303271344 | Screw-front Mtg |
|
- | |||||
| 3 | 08010928 | Nut-screw |
|
- | |||||
| 4 | 5303270064 | Rail Top |
|
- | |||||
| 5 | 3015312 | Screw |
|
- | |||||
| 6 | 08016266 | Seal-top Rail |
|
- | |||||
| 7 | 3002603 | Seal-window |
|
- | |||||
| 8 | 5303211056 | Bracket Window |
|
- | |||||
| 9 | 5308002974 | Screw |
|
- | |||||
| 10 | 5303270062 | Frame Extension Rh |
|
- | |||||
| 11 | 5303270061 | Frame Extension Lh |
|
- | |||||
| 12 | 5303270075 | Accordion Closure |
|
- | |||||
| 13 | 3002801 | Screw-frame |
|
- | |||||
| 14 | 5303270073 | Retainer |
|
- | |||||
| 15 | 08016080 | Screw-leveling |
|
- | |||||
| 16 | 5303270072 | Rail Btm |
|
- | |||||
| 17 | 3001806 | Screw Rail |
|
- | |||||
| 18 | 08014228 | Louvers |
|
- | |||||
| 19 | 08013699 | Handle |
|
- | |||||
| 20 | 3203495 | Clip-filter |
|
- | |||||
| 21 | 08009018 | Filter |
|
- | |||||
| 22 | 08007482 | Seal-mullion |
|
- | |||||
| 23 | 5303271343 | Front Complete |
|
- | |||||
| 24 | 5303271344 | Insert |
|
- | |||||
| 25 | 5300331902 | Knob Control |
|
- | |||||
| 26 | 5303271342 | Dial Plate |
|
- | |||||
| 27 | 5303001861 | Seal |
|
- |
