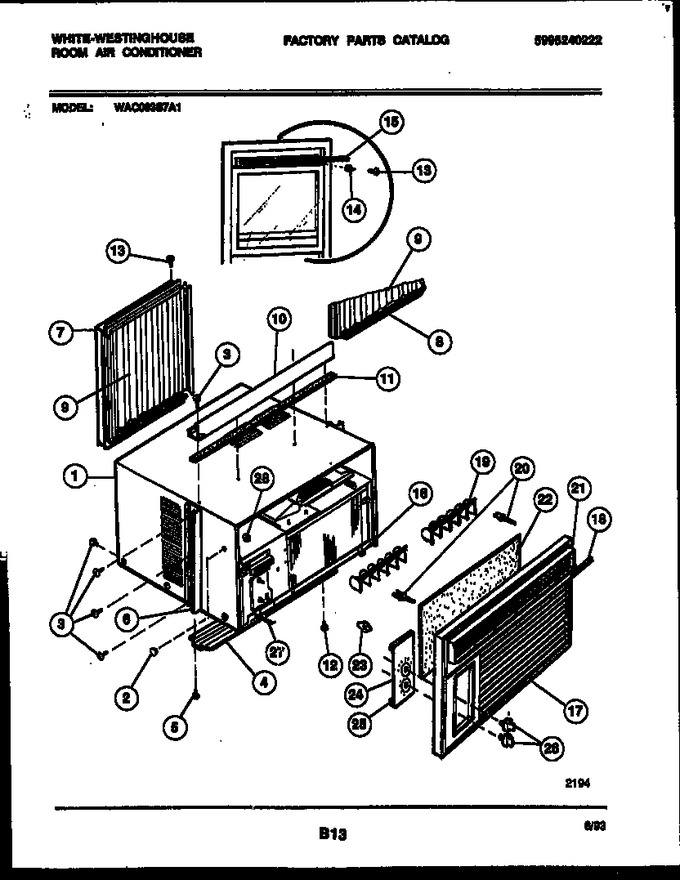

02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 5303271346 | Screw-front |
|
- | |||||
| 3 | 3015312 | Screw |
|
- | |||||
| 4 | 5303270072 | Rail Bottom |
|
- | |||||
| 5 | 3001806 | Screw-rail Btm. |
|
- | |||||
| 6 | 5303270073 | Retainer |
|
- | |||||
| 7 | 5303282370 | Frame-lh |
|
- | |||||
| 8 | 5303282371 | Frame-rh |
|
- | |||||
| 9 | 5303270075 | Accordian Closure |
|
- | |||||
| 10 | 5303270064 | Rail Top |
|
- | |||||
| 11 | 08016226 | Seal |
|
- | |||||
| 12 | 08016080 | Screw-leveling |
|
- | |||||
| 13 | 5308002974 | Screw Frame To Sash |
|
- | |||||
| 14 | 5303211056 | Angle Bracket Window |
|
- | |||||
| 15 | 3002603 | Seal-gasket-window |
|
- | |||||
| 16 | 5303001784 | Clip-front To Base |
|
- | |||||
| 17 | 5303300120 | Front Cab-complete (does Not Include Filter & Clip) |
|
- | |||||
| 18 | 08007482 | Seal-mullion |
|
- | |||||
| 19 | 5303293806 | Link Louver (2) |
|
- | |||||
| 20 | 5303293807 | Handle Louver |
|
- | |||||
| 21 | 5303300121 | Insert Mullion |
|
- | |||||
| 22 | 3016117 | Filter |
|
- | |||||
| 23 | 3203495 | Clip-filter |
|
- | |||||
| 24 | 5303289325 | Dial Plate |
|
- | |||||
| 25 | 5303001861 | Seal |
|
- | |||||
| 26 | 5300331902 | Knob |
|
- | |||||
| 27 | 5303270058 | Power Cord |
|
- | |||||
| 28 | 08010928 | Nut-front Screw |
|
- |
