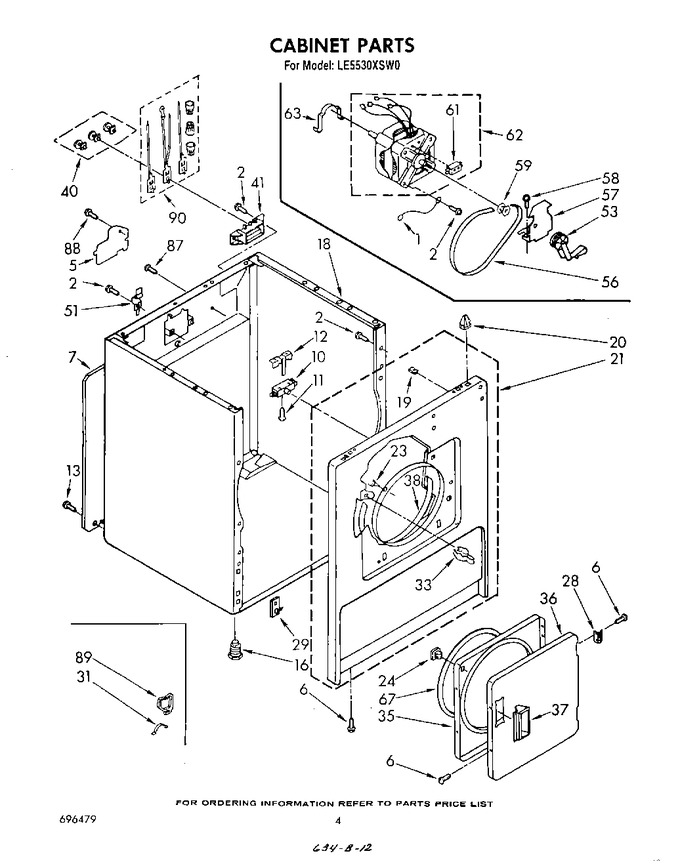

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 2 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 9416643) |
|
Immediately | $ 7.08 | ||||
| 5 | W11736322 | Cover, Terminal Block (Replaces: 690893) |
|
- | |||||
| 6 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 7 | 346368 | Panel, Rear |
|
- | |||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 11 | WP98129 | Screw, 6-20 X 1-3/8 (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 12 | WP691581 | Lever, Door Switch (Replaces: 295998) |
|
Immediately | $ 7.28 | ||||
| 13 | WP489069 | Screw, Rear Panel Mounting (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 688222) |
|
Immediately | $ 7.70 | ||||
| 18 | 690847 | Cabinet (white) |
|
- | |||||
| 18 | 690848 | Cabinet (almond) |
|
- | |||||
| 18 | 694875 | Cabinet (platinum) |
|
- | |||||
| 18 | 694874 | Cabinet (toast) |
|
- | |||||
| 18 | 690851 | Cabinet (golden Harvest) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.41 | ||||
| 21 | 693197 | Upper Front Panel Assembly (white) |
|
- | |||||
| 21 | 693198 | Upper Front Panel Assembly (almond) |
|
- | |||||
| 21 | 693201 | Upper Front Panel Assembly (golden Harvest) |
|
- | |||||
| 21 | 695259 | Upper Front Panel Assembly (toast) |
|
- | |||||
| 21 | 695260 | Upper Front Panel Assembly (platinum) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 28 | WP348023 | Hinge And Pin Assembly (2) (Replaces: 348023) |
|
$ 7.58 | |||||
| 29 | W10854425 | Clip, Front Panel (2) (Replaces: 237823) |
|
Immediately | $ 14.00 | ||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 35 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 177.82 | |||||
| 36 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 132.65 | ||||
| 36 | 695215 | Door, Front (platinum) |
|
- | |||||
| 36 | 689319 | Door Front (golden Harvest) |
|
- | |||||
| 36 | 689314 | Door, Front (almond) |
|
- | |||||
| 36 | 695214 | Door, Front (toast) |
|
- | |||||
| 37 | WP686711 | Handle, Door (white) (Replaces: 686715) |
|
Immediately | $ 7.16 | ||||
| 37 | 695286 | Handle, Door (platinum) |
|
- | |||||
| 37 | 689306 | Handle, Door (almond) |
|
- | |||||
| 37 | 689584 | Handle, Door (golden Harvest) |
|
- | |||||
| 37 | WP686711 | Handle, Door (toast) (Replaces: 695285) |
|
Immediately | $ 7.16 | ||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 67.07 | ||||
| 40 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 41 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 61.43 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 16.34 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 694871) |
|
Immediately | $ 45.92 | ||||
| 61 | 279827 | Switch (use W/695075 Motor) (Replaces: 337351) |
|
Immediately | $ 172.76 | ||||
| 61 | 279827 | Switch ((use W/689788 Motor)) (Replaces: 349588) |
|
Immediately | $ 172.76 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 695075) |
|
Immediately | $ 172.76 | ||||
| 63 | WP660658 | Clamp, Motor (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 67 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 48.27 | |||||
| 87 | WP681414 | Screw, 10-32 X 1/2 (external Ground) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 88 | WP693995 | Screw, 10-16 X 1/2 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 89 | 688412 | Clip, Retainer |
|
- | |||||
| 90 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 40) |
|
Immediately | $ 90.89 |
