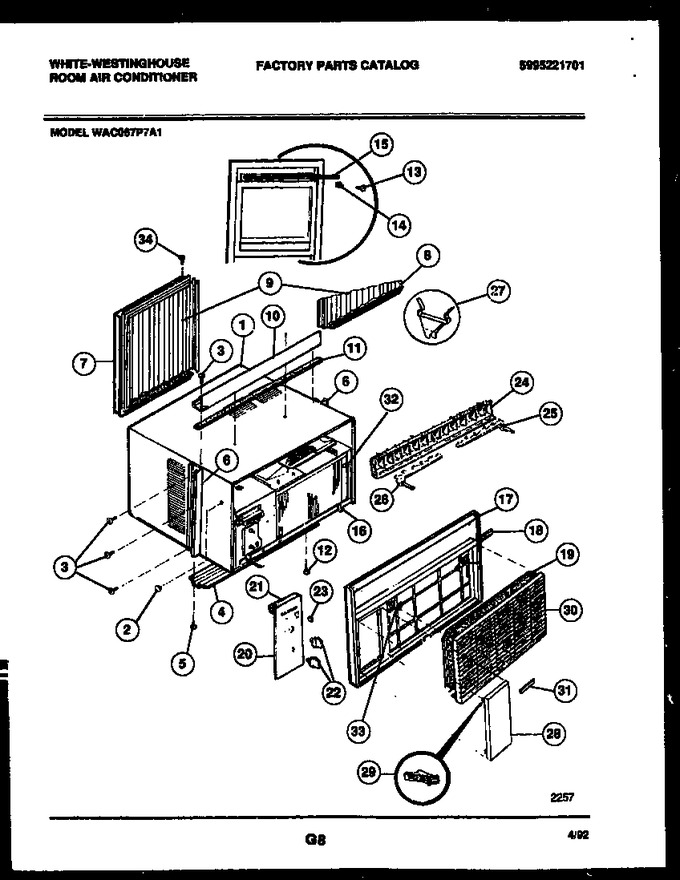

02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 08016091 | Plug |
|
- | |||||
| 3 | 3015312 | Screw |
|
- | |||||
| 4 | 5303270072 | Rail Bottom |
|
- | |||||
| 5 | 3001806 | Screw-rail Btm. |
|
- | |||||
| 6 | 5303270073 | Retainer |
|
- | |||||
| 7 | 5303270061 | Frame Extension Lh |
|
- | |||||
| 8 | 5303270062 | Frame Extension Rh |
|
- | |||||
| 9 | 5303270075 | Accordian Closure |
|
- | |||||
| 10 | 5303270064 | Rail Top |
|
- | |||||
| 11 | 08016226 | Seal |
|
- | |||||
| 12 | 08016080 | Screw-leveling |
|
- | |||||
| 13 | 5308002974 | Screw Frame To Sash |
|
- | |||||
| 14 | 5303211056 | Angle Bracket Window |
|
- | |||||
| 15 | 3002603 | Seal-gasket-window |
|
- | |||||
| 16 | 5303001784 | Clip-front To Base |
|
- | |||||
| 17 | 3016097 | Front Cab-complete |
|
- | |||||
| 18 | 3016094 | Seal-mullion |
|
- | |||||
| 19 | 5303016095 | Filter |
|
- | |||||
| 20 | 5303280595 | Dial Plate |
|
- | |||||
| 21 | 5303001861 | Seal |
|
- | |||||
| 22 | 5300331902 | Knob Control |
|
- | |||||
| 23 | 5303002189 | Knob-slide |
|
- | |||||
| 24 | 5303002457 | Louver & Link |
|
- | |||||
| 25 | 5303002160 | Link-rh |
|
- | |||||
| 26 | 08017146 | Link-lh |
|
- | |||||
| 27 | 5303001844 | Clip |
|
- | |||||
| 28 | 3201559 | Door |
|
- | |||||
| 29 | 5303017980 | Hinge |
|
- | |||||
| 30 | 3016096 | Panel |
|
- | |||||
| 31 | 5300138101 | Nameplate |
|
- | |||||
| 32 | 5308017124 | Bracket |
|
- | |||||
| 33 | 5308008175 | Screw-front |
|
- | |||||
| 34 | 3002801 | Screw |
|
- |
