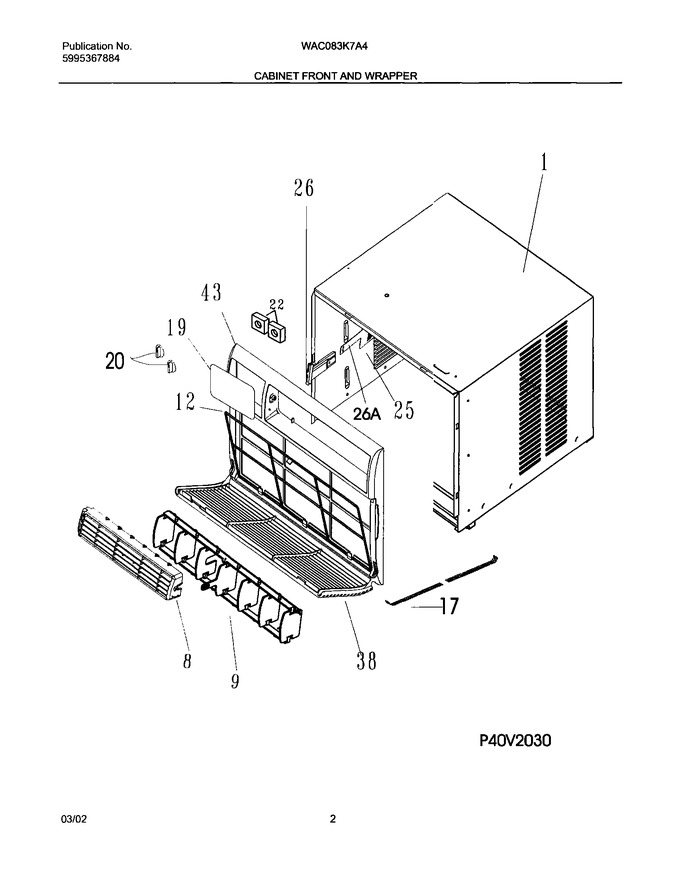

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309643602		Cabinet		Appelez-nous	-
8	309640204		Louver Assy,includes 8 & 9		Appelez-nous	-
8	309639302		Louver,horizontal		Appelez-nous	-
9	309647201		Louver,vertical ,with Link		Appelez-nous	-
12	309343501		Filter-air,7.12 X 17.31 ,no Frame				$ 49.82
17	309640104		Front-cabinet,4 Way ,complete Assy				$ 331.59
19	309342906		Dial Plate		Appelez-nous	-
20	309306810		Knob-control,rotary		Appelez-nous	-
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
25	309328603		Door,fresh Air Vent		Appelez-nous	-
26	309638201		Handle Vent Door		Appelez-nous	-
38	309646301		Panel,cabinet Front				$ 50.77
43	309646401		Frame,cabinet Front				$ 77.70
26A	309330201		Detent-vent				$ 26.30
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
NI	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
NI	309367448		Energy Guide,wac083k7a4		Appelez-nous	-
