Diagram # Part Number Description Series Availability Ships Price Add to Cart
7 309602502 Box-control Appelez-nous -
8 5308013150 Switch-selector Appelez-nous -
9 5303302852 Control-temperature Special Order $ 203.91

10 309602401 Bulkhead Appelez-nous -
12 309101201 Clip-control Bulb Appelez-nous -
12 309101202 Clip-control Bulb, (2) Appelez-nous -
13 309312105 Capacitor, 370 V, 10 + 35 Mfd Appelez-nous -
14 5303303691 Screw Appelez-nous -
15 5303303086 Strap-capacitor Appelez-nous -
17 5303302853 Cord-electric Power Appelez-nous -
18 5303007754 Screw Appelez-nous -
19 5303302855 Cover-capacitor Appelez-nous -
20 5303002600 Sleeve-control Tube Appelez-nous -
*87360 5303304090 Seal-control Box Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

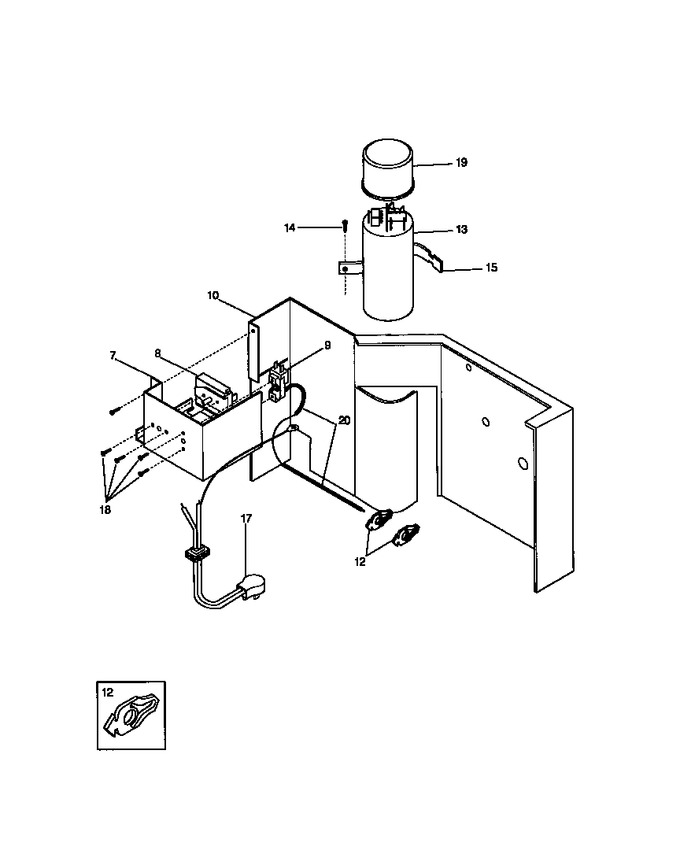

Diagram for WAC083W7A3
