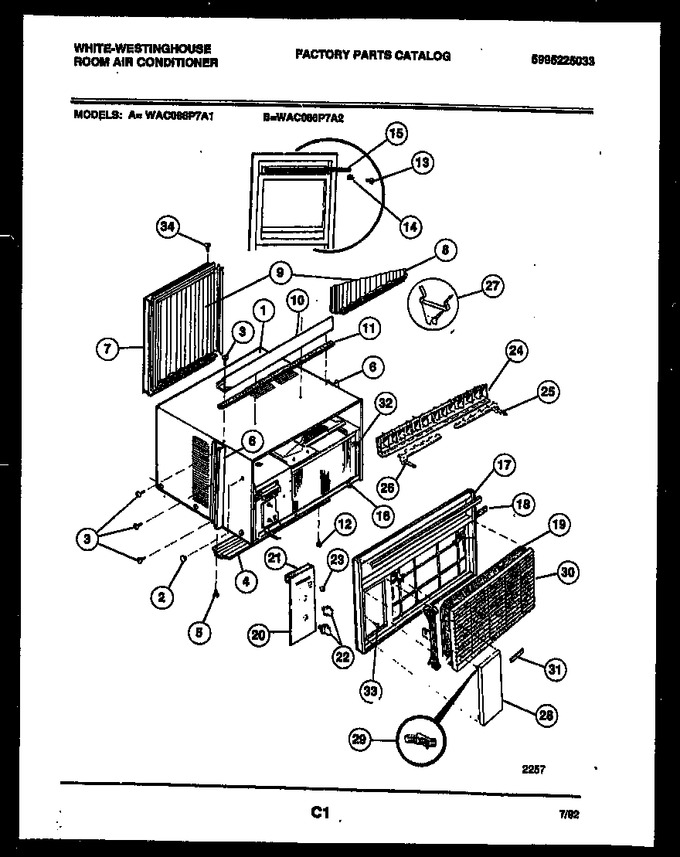

02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 08016091 | Plug |
|
- | |||||
| 3 | 3015312 | Screw |
|
- | |||||
| 4 | 5303270072 | Rail Bottom |
|
- | |||||
| 5 | 3001806 | Screw-rail Btm. |
|
- | |||||
| 6 | 5303270073 | Retainer |
|
- | |||||
| 7 | 5303282370 | Frame Extension-lh |
|
- | |||||
| 8 | 5303282371 | Frame Extension-rh |
|
- | |||||
| 9 | 5303270075 | Accordian Closure |
|
- | |||||
| 10 | 5303270064 | Rail Top |
|
- | |||||
| 11 | 08016226 | Seal |
|
- | |||||
| 12 | 08016080 | Screw-leveling |
|
- | |||||
| 13 | 5308002974 | Screw Frame To Sash |
|
- | |||||
| 14 | 5303211056 | Angle Bracket Window |
|
- | |||||
| 15 | 3002603 | Seal-gasket-window |
|
- | |||||
| 16 | 5303001784 | Clip-front To Base |
|
- | |||||
| 17 | 3016097 | Front Cab-complete |
|
- | |||||
| 18 | 3016094 | Seal-mullion |
|
- | |||||
| 19 | 5303016095 | Filter |
|
- | |||||
| 20 | 5303280596 | Dial Plate |
|
- | |||||
| 21 | 5303001861 | Seal |
|
- | |||||
| 22 | 5300331902 | Knob Control |
|
- | |||||
| 23 | 5303002189 | Knob-slide |
|
- | |||||
| 24 | 5303002457 | Louver & Link |
|
- | |||||
| 25 | 5303002160 | Link-rh |
|
- | |||||
