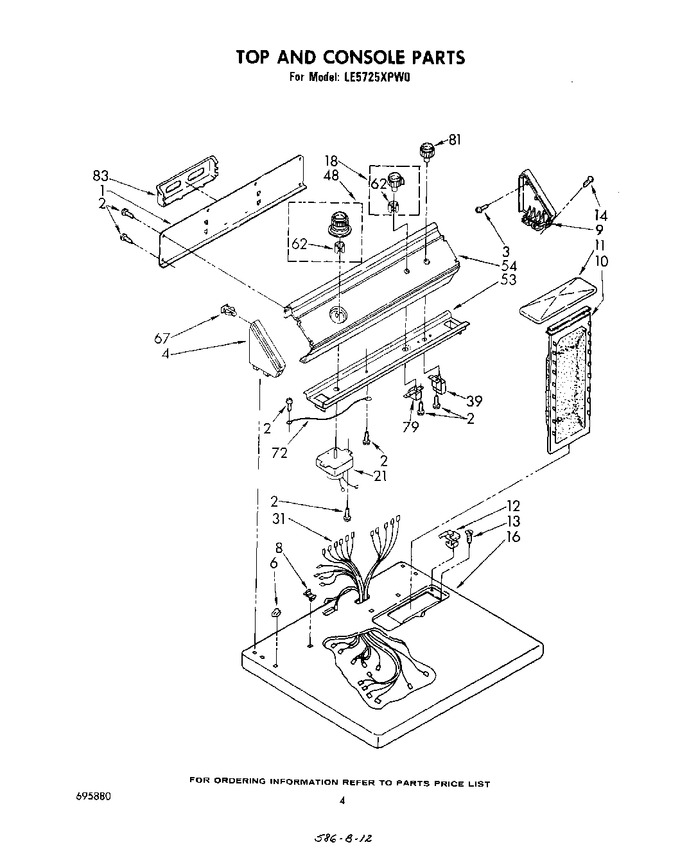

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 386367 | Panel, Rear Console |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 63789 | Cap, End (l.h.) |
|
- | |||||
| 6 | 358473 | Stop, Push-in |
|
$ 5.84 | |||||
| 8 | 358472 | Nut, Push-in (2) |
|
- | |||||
| 9 | 63795 | Cap, End. (r.h.) |
|
$ 14.10 | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 37.72 | ||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689313 | Cover, Lint Screen (golden Harvest) |
|
- | |||||
| 11 | 695022 | Cover, Lint Screen (toast) |
|
- | |||||
| 11 | 695023 | Cover, Lint Screen (platinum) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 6.95 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 6.95 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 14 | WP388326 | Screw, End Cap (Replaces: 64211) |
|
$ 7.30 | |||||
| 16 | 695509 | Top (golden Harvest) |
|
- | |||||
| 16 | 695510 | Top (toast) |
|
- | |||||
| 16 | 695511 | Top (platinum) |
|
- | |||||
| 16 | 695508 | Top (almond) |
|
- | |||||
| 16 | 695507 | Top (white) |
|
- | |||||
| 18 | 386629 | Knob, Temperature Selector |
|
- | |||||
| 21 | 687950 | Timer, 60 Hz. |
|
- | |||||
| 31 | 696249 | Harness, Wiring |
|
- | |||||
| 39 | 692021 | Switch, Push-to-start (alt.) |
|
- | |||||
| 39 | 346364 | Switch, Push-to-start (alt.) |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 48 | 695555 | Timer Knob & Dial Assembly |
|
- | |||||
| 53 | 386627 | Bracket, Control |
|
- | |||||
| 54 | 695958 | Panel, Control |
|
- | |||||
| 62 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 67 | 689559 | Nut, Push-in (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 694720 | Switch, Rotary (temperature Selector) |
|
- | |||||
| 81 | 695946 | Knob, Push To Start |
|
- | |||||
| 83 | 63020 | Rack, Literature |
|
$ 30.32 | |||||
| LIT695880 | List, Service Parts |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 285365 | Toast |
|
- | ||||||
| 261890 | Golden Harvest |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| LIT693849 | Guide, Dryer |
|
- | ||||||
| LIT696752 | Use & Care Guide |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| LIT696234 | Instructions, Installation |
|
- | ||||||
| LIT677813 | Automatic Washer (belt Drive) |
|
- | ||||||
| LIT677971 | Ice Maker (in Refrigerator) |
|
- | ||||||
| LIT677967 | Dishwasher |
|
- | ||||||
| 677821 | Compactor (Replaces: LIT677821) |
|
$ 31.51 | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 285368 | Platinum (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- |
