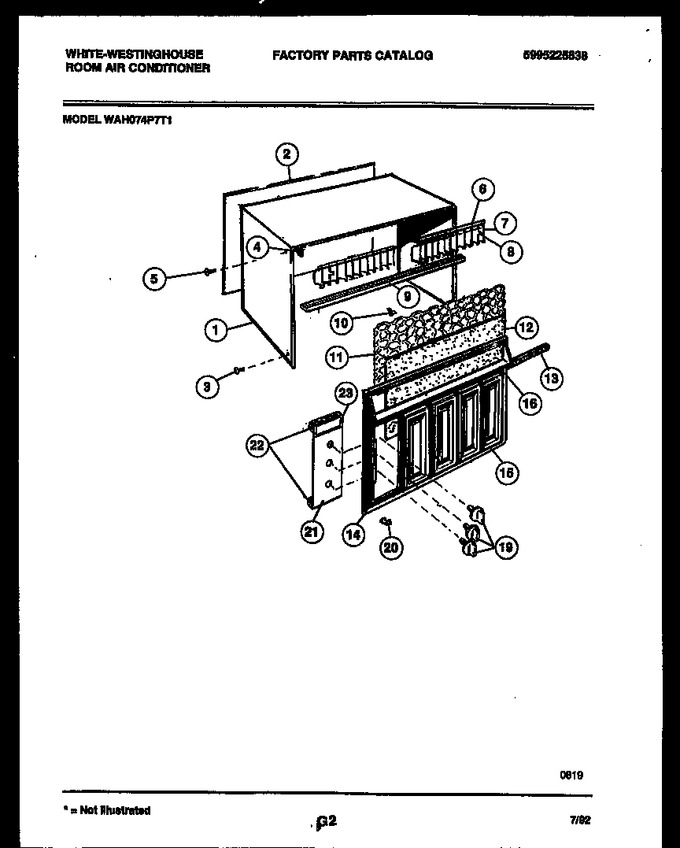

02 - Cabinet Parts


03 - System Parts


04 - Air Handling And Compressor Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303285196		Wrapper		Appelez-nous	-
2	5308006428		Plug Button		Appelez-nous	-
3	3015312		Screw-wrapper		Appelez-nous	-
4	08010928		Nut, Cab. Front		Appelez-nous	-
5	5303271346		Screw, Cab. Front		Appelez-nous	-
6	5303285392		Link-louver (2)		Appelez-nous	-
7	5303291114		Louver (12)		Appelez-nous	-
8	5303291116		Louver W/handle (2)		Appelez-nous	-
9	5303285394		Retainer, Louver		Appelez-nous	-
10	5308013095		Clip, Filter		Appelez-nous	-
11	5303285402		Screen		Appelez-nous	-
12	3016117		Filter		Appelez-nous	-
13	5300521760		Seal-mullion		Appelez-nous	-
14	5303285393		Seal, Bottom		Appelez-nous	-
15	5300448104		Front, Complete		Appelez-nous	-
16	5303285391		Trim, Mullion		Appelez-nous	-
19	5300331902		Knob (3)		Appelez-nous	-
20	5308010914		Clip-front To Base		Appelez-nous	-
21	5303291111		Dial Plate		Appelez-nous	-
22	5303012017		Seal		Appelez-nous	-
11A	5308008175		Screw-screen		Appelez-nous	-
