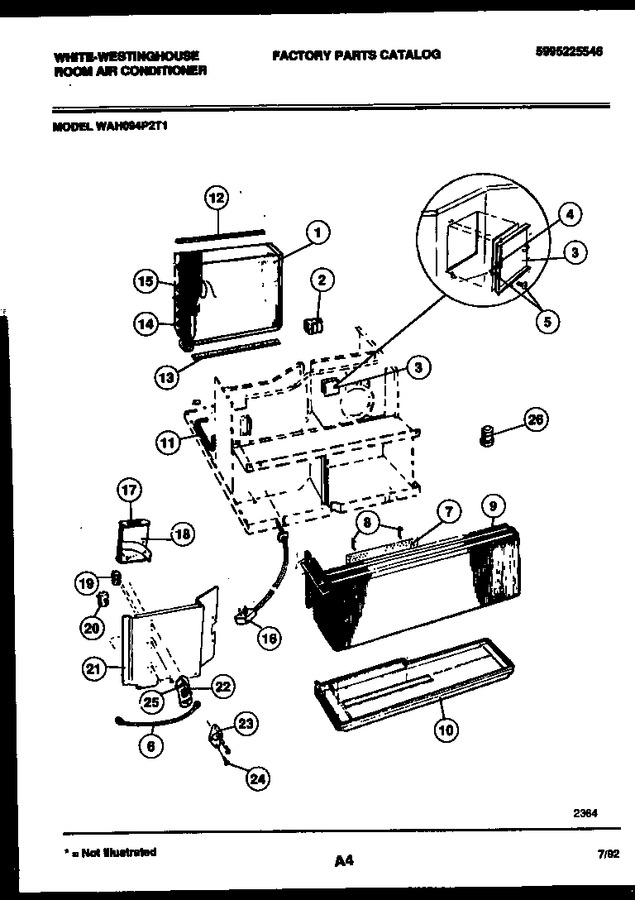

02 - Cabinet Parts
03 - Power Control
04 - Air Handling And Compressor Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002242 | Condenser |
|
- | |||||
| 2 | 3016686 | Grommet, Tube |
|
- | |||||
| 3 | 5303012455 | Door Vent |
|
- | |||||
| 4 | 08003049 | Spring |
|
- | |||||
| 5 | 5303285199 | Screw, Spring |
|
- | |||||
| 6 | 3017504 | Cable |
|
- | |||||
| 7 | 5308006449 | Baffle-evaporator |
|
- | |||||
| 8 | 08006448 | Retainer |
|
- | |||||
| 9 | 5303285953 | Evaporator |
|
- | |||||
| 10 | 5308006452 | Tray |
|
- | |||||
| 11 | 3017505 | Drain Tube |
|
- | |||||
| 12 | 5308007697 | Seal, Top, Condenser |
|
- | |||||
| 13 | 08007704 | Seal, Btm, Condenser |
|
- | |||||
| 14 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 15 | 5303209547 | Capillary Tube, Cut To 50`` |
|
- | |||||
| 16 | 5303270109 | Power Cord |
|
- | |||||
| 17 | 5308013612 | Capacitor 7.5-25/370v |
|
- | |||||
| 18 | 08006443 | Strap |
|
- | |||||
| 19 | 5303289076 | Switch |
|
- | |||||
| 20 | 5303285388 | Control, Temp |
|
- | |||||
| 21 | 3017506 | Panel-control |
|
- | |||||
| 22 | 5303002096 | Base-detent |
|
- | |||||
| 23 | 08002946 | Plate |
|
- | |||||
| 24 | 08011095 | Screw |
|
- | |||||
| 25 | 08002946 | Spring |
|
- | |||||
| 26 | 3205437 | Grommet, Drain |
|
- |
