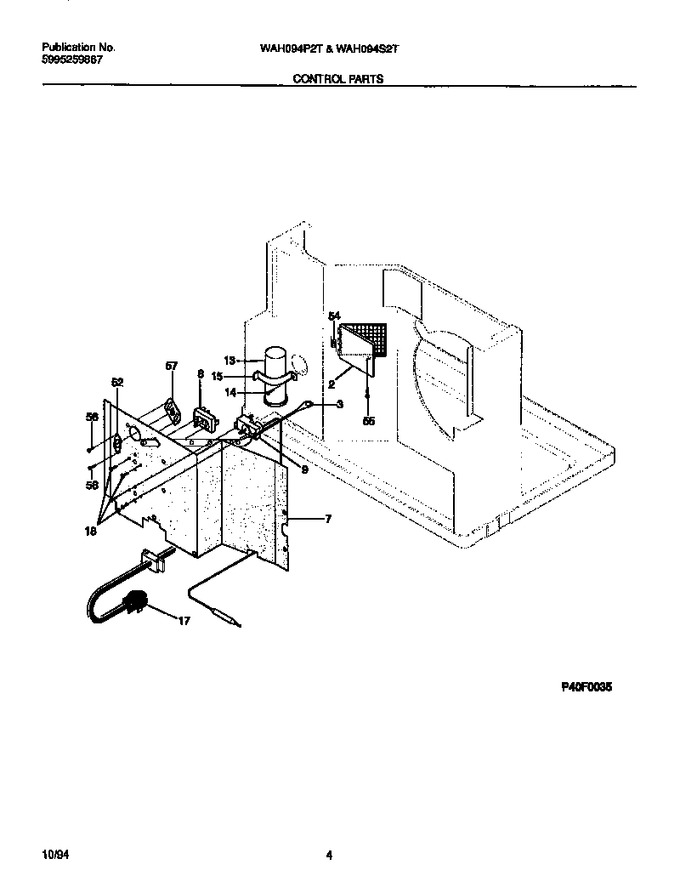

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303012455 | Door Vent |
|
- | |||||
| 3 | 5303301584 | Cable-vent Door |
|
- | |||||
| 6 | 3015312 | Screw |
|
- | |||||
| 7 | 3017506 | Panel-control |
|
- | |||||
| 8 | 3204196 | Switch-selector |
|
- | |||||
| 9 | 5303285388 | Control -temperature |
|
- | |||||
| 13 | 5308013612 | Capacitor, 370v, 7.5 X 25 Mid |
|
- | |||||
| 14 | 5303015427 | Screw |
|
- | |||||
| 15 | 08006443 | Strap-capacitor |
|
- | |||||
| 17 | 5303301030 | Cord-electric Power |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 52 | 08002946 | Spring-detent |
|
- | |||||
| 54 | 08003049 | Spring-vent Door |
|
- | |||||
| 55 | 5303285199 | Screw, Vent Door |
|
- | |||||
| 56 | 08011095 | Screw-detent, 56 |
|
- | |||||
| 57 | 5303002096 | Base-detent |
|
- |
