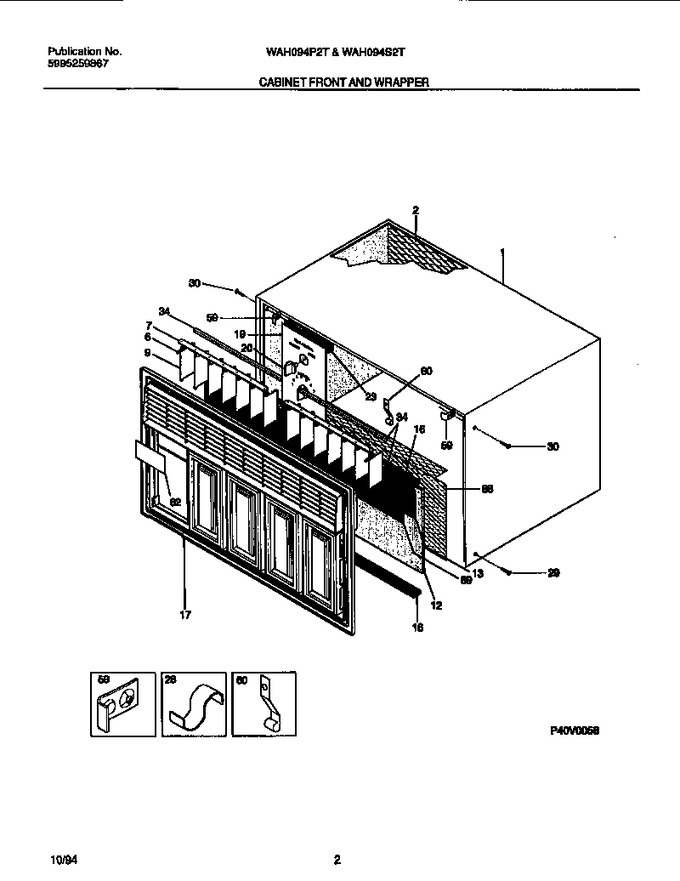

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301882 | Wrapper |
|
- | |||||
| 2 | 5308006428 | Panel-rear |
|
- | |||||
| 6 | 5303302226 | Louver W/handle |
|
- | |||||
| 7 | 5303302228 | Link-louvers, (2) |
|
- | |||||
| 9 | 5303302225 | Louver-vertical (12) |
|
- | |||||
| 12 | 3016117 | Filter |
|
- | |||||
| 13 | 5300521760 | Seal-mullion |
|
- | |||||
| 16 | 5303302229 | Seal-bottom |
|
- | |||||
| 17 | 5303306664 | Front Complete |
|
- | |||||
| 19 | 5303291111 | Dial Plate |
|
- | |||||
| 20 | 5300331902 | Knob-control (2) |
|
- | |||||
| 23 | 5303012017 | Seal-dial Plate |
|
- | |||||
| 28 | 5308010914 | Clip-front/base |
|
- | |||||
| 29 | 3015312 | Screw |
|
- | |||||
| 30 | 5303271346 | Screw-front |
|
- | |||||
| 34 | 5303302227 | Retainer-louver (4) |
|
- | |||||
| 39 | 134178901 | Screw,front (Replaces: 5303293767) |
|
$ 14.89 | |||||
| 60 | 5308013095 | Clip-filter (2) |
|
- | |||||
| 62 | 5303306661 | Insert-front |
|
- | |||||
| 68 | 5303285402 | Screen -filter |
|
- | |||||
| 69 | 5303302230 | Strip-mullion |
|
- |
