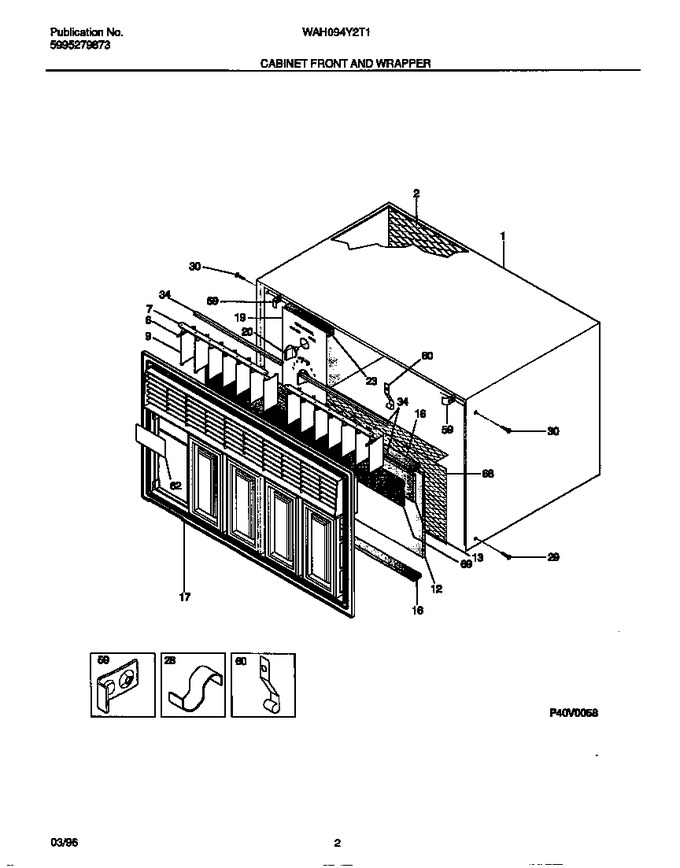

SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303301882		Wrapper		Appelez-nous	-
2	5308006428		Panel-rear		Appelez-nous	-
6	5303302226		Louver W/handle		Appelez-nous	-
7	5303302228		Link-louver, (2)		Appelez-nous	-
9	5303302225		Louver-vertical (12)		Appelez-nous	-
12	3016117		Filter		Appelez-nous	-
13	5300521760		Seal-mullion		Appelez-nous	-
16	5303302229		Seal-bottom		Appelez-nous	-
17	5303306664		Front Complete		Appelez-nous	-
19	5303318554		Dial Plate		Appelez-nous	-
20	5300331902		Knob Control		Appelez-nous	-
23	5303012017		Seal-dial Plate		Appelez-nous	-
28	5308010914		Clip-front To Base		Appelez-nous	-
29	3015312		Screw, 8-18 X 0.47		Appelez-nous	-
30	5303271346		Screw, Truss Head, 8-18ab X 0.75		Appelez-nous	-
34	5303302227		Retainer-louver (4)		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
60	5308013095		Clip-filter (2)		Appelez-nous	-
62	5303318618		Insert-front		Appelez-nous	-
68	5303285402		Screen -filter		Appelez-nous	-
69	5303302230		Strip-mullion		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
