01 - Cover
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
SELECT A DIAGRAM
New Model Search:

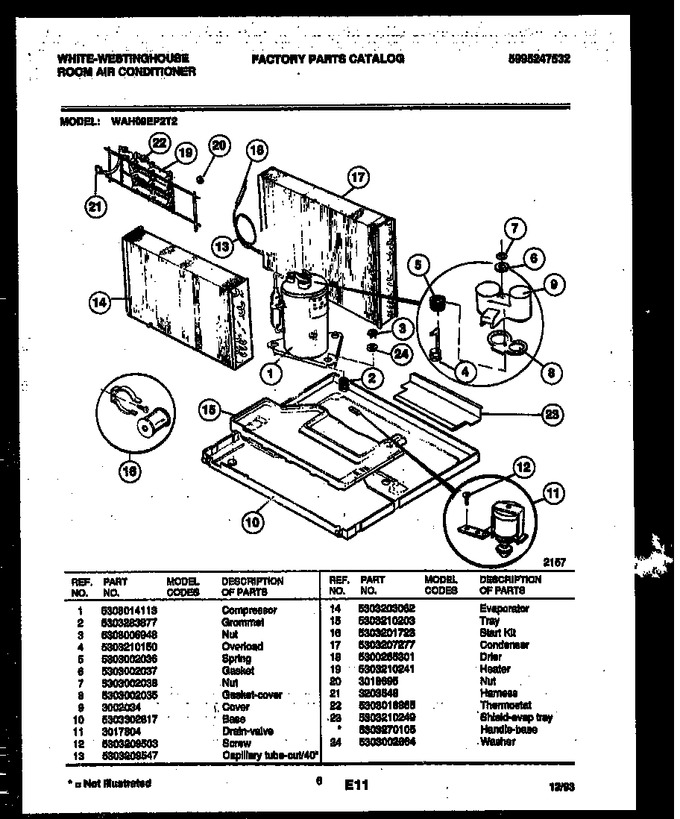

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308014113 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 4 | 5303210150 | Overload |
|
- | |||||
| 5 | 5303002036 | Spring |
|
- | |||||
| 6 | 5303002037 | Gasket |
|
- | |||||
| 7 | 5303002038 | Nut |
|
- | |||||
| 8 | 5303002035 | Gasket-cover |
|
- | |||||
| 9 | 3002034 | Cover |
|
- | |||||
| 10 | 5303302817 | Base |
|
- | |||||
| 11 | 3017804 | Drain-valve |
|
- | |||||
| 12 | 5303209503 | Screw |
|
- | |||||
| 13 | 5303209547 | Capillary Tube-cut/40`` |
|
- | |||||
| 14 | 5303203062 | Evaporator |
|
- | |||||
| 15 | 5303210203 | Tray |
|
- | |||||
| 16 | 5303201723 | Start Kit |
|
- | |||||
| 17 | 5303207277 | Condenser |
|
- | |||||
| 18 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 19 | 5303210241 | Heater |
|
- | |||||
| 20 | 3018695 | Nut |
|
- | |||||
| 21 | 3203548 | Harness |
|
- | |||||
| 22 | 5303016865 | Thermostat |
|
- | |||||
| 23 | 5303210249 | Shield-evap Tray |
|
- | |||||
| 24 | 5303002664 | Washer |
|
- | |||||
| 23A | 5303270105 | Handle-base (non-illustrated) |
|
- |
