SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front/wrapper


03 - Control Parts

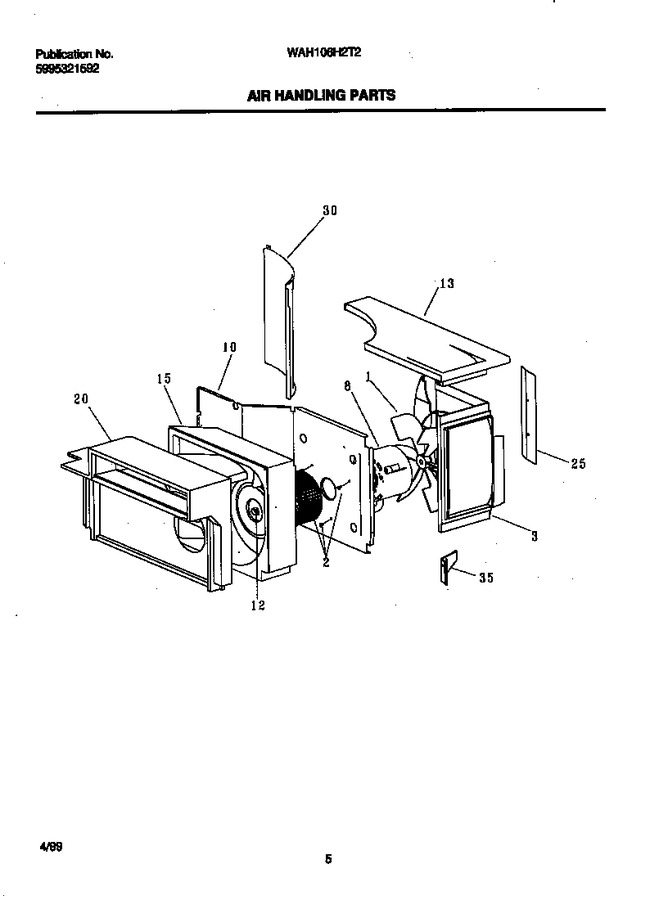

04 - Air Handling Parts


05 - Compressor


06 - Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3200761		Spacer - Control Bulb		Appelez-nous	-
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
3	309628901		Shroud-condenser 18.5 Bld		Appelez-nous	-
5	3202951		Seal,housing-fan ,bottom		Appelez-nous	-
8	5304408765		Motor-fan Ge 3sp W/lds 48fr		Appelez-nous	-
10	309627401		Bulkhead-18.5chassis (flex)		Appelez-nous	-
11	309631701		Blower Wheel-18.5 Bld				$ 19.90
12	5303012110		Clamp-blower				$ 8.14
13	309628801		Top-condenser 18.5a Nsl		Appelez-nous	-
15	309622801		Scroll-18.5 Tc Bld Cool				$ 56.28
20	309622901		Scroll Plate-18.5 T/c Bld		Appelez-nous	-
25	309335201		Baffle-air 18.5``		Appelez-nous	-
30	309629001		Partition-shroud		Appelez-nous	-
35	309335001		Baffle-condensate For Motor		Appelez-nous	-
