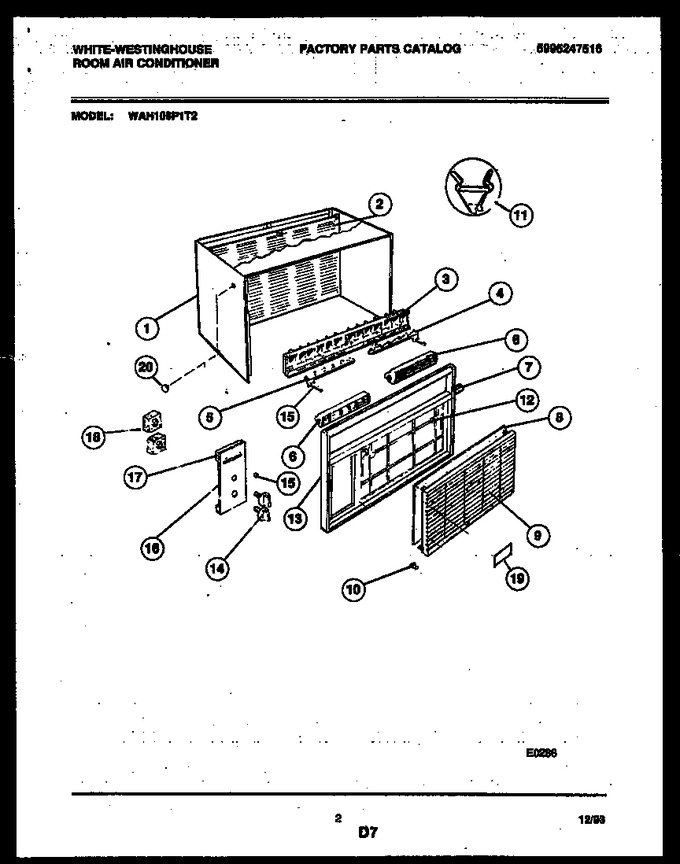

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301032 | Wrapper |
|
- | |||||
| 2 | 5303301025 | Grille-rear |
|
- | |||||
| 3 | 5303002458 | Louvers W/ Link |
|
- | |||||
| 4 | 5303293786 | Link-rh |
|
- | |||||
| 5 | 5303293787 | Link-lh |
|
- | |||||
| 6 | 5308017244 | Louvers |
|
- | |||||
| 7 | 5300301157 | Seal-mullion |
|
- | |||||
| 8 | 5303001809 | Filter |
|
- | |||||
| 9 | 5303210352 | Panel-front |
|
- | |||||
| 10 | 5308010914 | Clip-front To Base |
|
- | |||||
| 11 | 5303001844 | Clip |
|
- | |||||
| 12 | 5308008175 | Screw-front |
|
- | |||||
| 13 | 5303210983 | Front-complete |
|
- | |||||
| 14 | 5300331902 | Knob Control |
|
- | |||||
| 15 | 5303002189 | Knob-slide |
|
- | |||||
| 16 | 5303211945 | Dial Plate |
|
- | |||||
| 17 | 5303001984 | Seal |
|
- | |||||
| 18 | 5303001775 | Spacer |
|
- | |||||
| 19 | 5300138101 | Nameplate |
|
- | |||||
| 20 | 08016091 | Plug Button |
|
- | |||||
| 2A | 5303299933 | Nameplate-rear (non-illustrated) |
|
- | |||||
| 2B | 5303301035 | Trim-side (non-illustrated) |
|
- | |||||
| 2C | 5303301036 | Trim-top (non-illustrated) |
|
- | |||||
| 2D | 5303301037 | Trim-bottom (non-illustrated) |
|
- |
