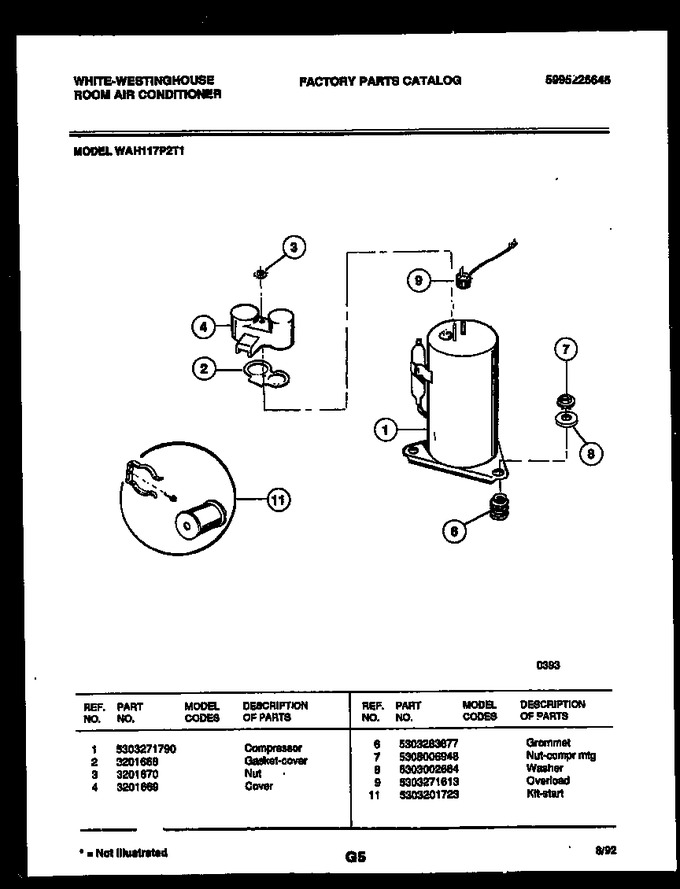

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271790 | Compressor |
|
- | |||||
| 2 | 3201668 | Gasket-cover |
|
- | |||||
| 3 | 3201670 | Nut |
|
- | |||||
| 4 | 3201669 | Cover |
|
- | |||||
| 6 | 5303283877 | Grommet |
|
- | |||||
| 7 | 5308006948 | Nut-compr Mtg |
|
- | |||||
| 8 | 5303002664 | Washer |
|
- | |||||
| 9 | 5303271613 | Overload |
|
- | |||||
| 11 | 5303201723 | Kit-start |
|
- |
