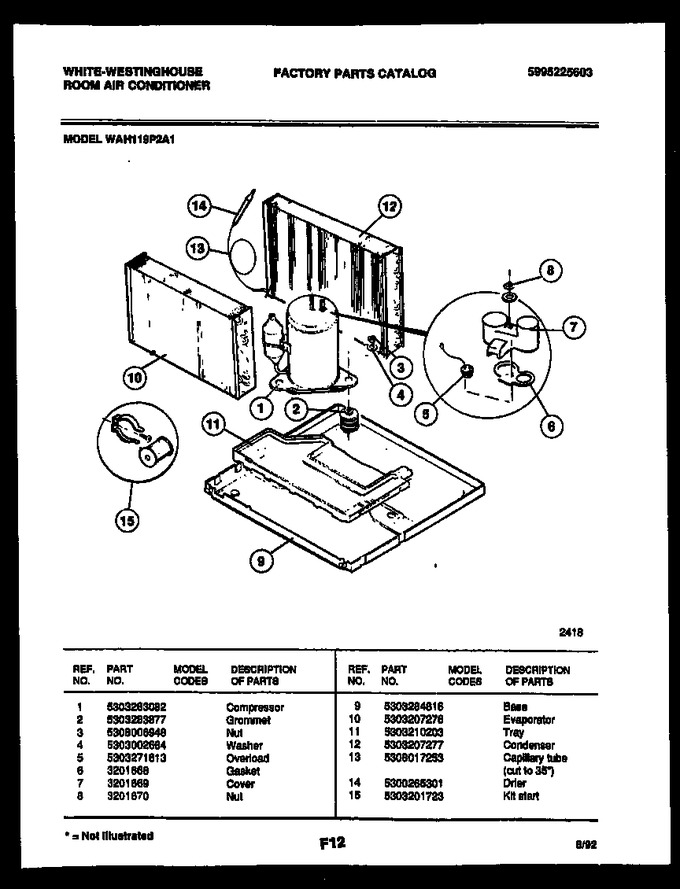

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303283082 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 4 | 5303002664 | Washer |
|
- | |||||
| 5 | 5303271613 | Overload |
|
- | |||||
| 6 | 3201668 | Gasket |
|
- | |||||
| 7 | 3201669 | Cover |
|
- | |||||
| 8 | 3201670 | Nut |
|
- | |||||
| 9 | 5303284816 | Base |
|
- | |||||
| 10 | 5303207276 | Evaporator |
|
- | |||||
| 11 | 5303210203 | Tray |
|
- | |||||
| 12 | 5303207277 | Condenser |
|
- | |||||
| 13 | 5308017253 | Capillary Tube-cut To 35`` |
|
- | |||||
| 14 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 15 | 5303201723 | Kit-start |
|
- |
