01 - Cover
02 - Cabinet Front And Wrapper

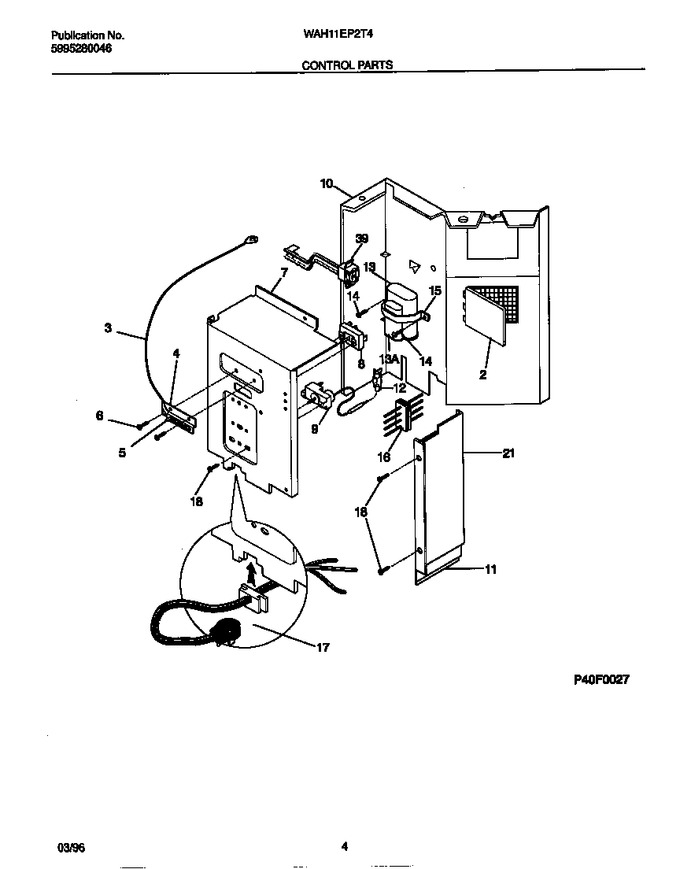

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303295752 | Door-ventilator |
|
- | |||||
| 3 | 5303015298 | Cable-vent Control |
|
- | |||||
| 4 | 5303202999 | Retainer |
|
- | |||||
| 5 | 3202941 | Actuator Arm-vent Control |
|
- | |||||
| 6 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 7 | 5303293521 | Panel-mounting, Controls |
|
- | |||||
| 8 | 5308017262 | Switch-selector |
|
- | |||||
| 9 | 5303002176 | Control-temperature |
|
- | |||||
| 10 | 5303295238 | Bulkhead |
|
- | |||||
| 11 | 5303210243 | Divider-vertical |
|
- | |||||
| 12 | 5303211009 | Clip-control Bulb |
|
- | |||||
| 13 | 5303316906 | Capacitor |
|
- | |||||
| 13 | 5308009152 | Capacitor, 370 V, 5 Mfd |
|
- | |||||
| 14 | 5303015427 | Screw, Truss Head, 8-18ab X 0.47, Square Drive |
|
- | |||||
| 15 | 5303306600 | Strap-capacitor |
|
- | |||||
| 16 | 5303203112 | Wiring Harness |
|
- | |||||
| 17 | 5303301041 | Cord - Electric Power |
|
- | |||||
| 18 | 5303007754 | Screw, .138-32 X .188 |
|
- | |||||
| 21 | 5303302651 | Insulation-divider |
|
- | |||||
| 39 | 3017076 | Harness-heater |
|
- |
