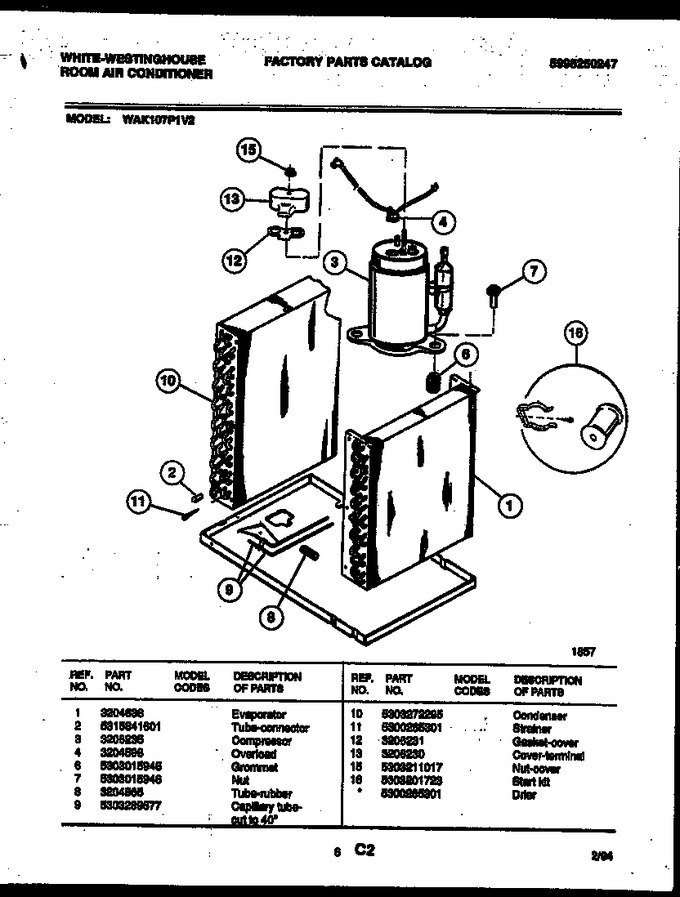

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204638 | Evaporator |
|
- | |||||
| 2 | 5315841601 | Tube-connector |
|
- | |||||
| 3 | 3206235 | Compressor |
|
- | |||||
| 4 | 3204598 | Overload |
|
- | |||||
| 6 | 5303015945 | Grommet |
|
- | |||||
| 7 | 5303015946 | Nut |
|
- | |||||
| 8 | 3204865 | Tube-rubber |
|
- | |||||
| 9 | 5303289577 | Capillary Tube-cut To 40`` |
|
- | |||||
| 10 | 5303272295 | Condenser |
|
- | |||||
| 11 | 5300265301 | Strainer |
|
$ 284.30 | |||||
| 12 | 3206231 | Gasket-cover |
|
- | |||||
| 13 | 3206230 | Cover-terminal |
|
- | |||||
| 15 | 5303211017 | Nut-cover |
|
- | |||||
| 16 | 5303201723 | Start Kit |
|
- | |||||
| *86975 | 5300265301 | Drier |
|
$ 284.30 |
