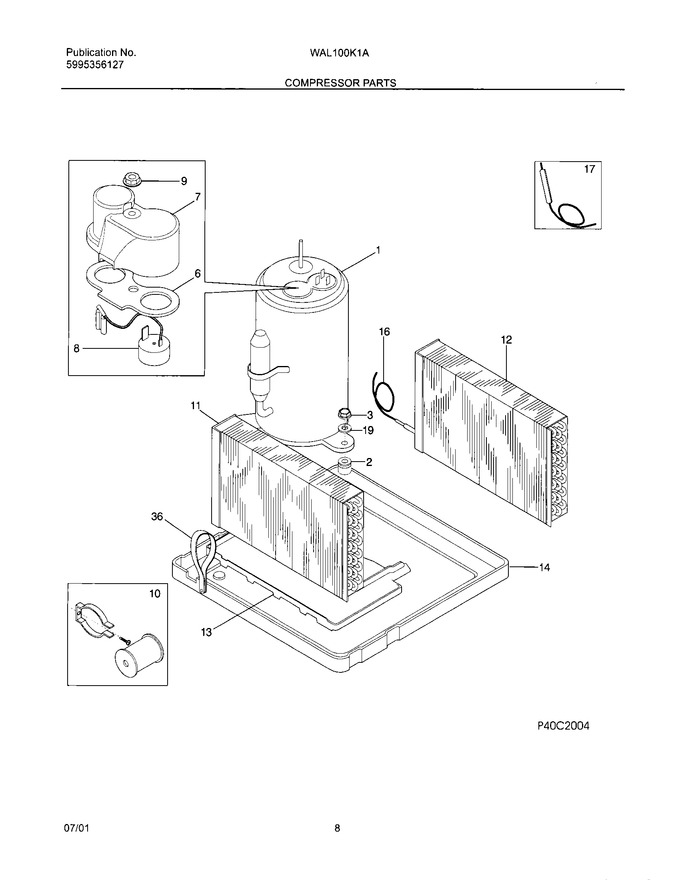

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	3200282		Gasket-cover		Appelez-nous	-
7	3200281		Cover-terminal		Appelez-nous	-
9	5303211017		Nut,terminal Cover		Appelez-nous	-
13	309606001		Tray-evaporator		Appelez-nous	-
14	5304419798		Base Assy,22tc ,grey		Appelez-nous	-
16	5308017120		Capillary Tube,45 Inch Long ,cut To Length		Appelez-nous	-
19	5303002664		Washer,compressor Mtg		Appelez-nous	-
36	5303303558		Strap-chassis Pull		Appelez-nous	-
F1	5304419112		Compressor-sanyo,806-014-42				$ 319.46
F10	5303317601		Start Assist Kit,compressor				$ 148.05
F11	309606101		Evaporator		Appelez-nous	-
F12	5304419796		Condenser Assy		Appelez-nous	-
F17	5304417604		Tube-process		Appelez-nous	-
F8	5303295567		Overload Protector		Appelez-nous	-
NI	309112501		Washer,metallic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
