02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

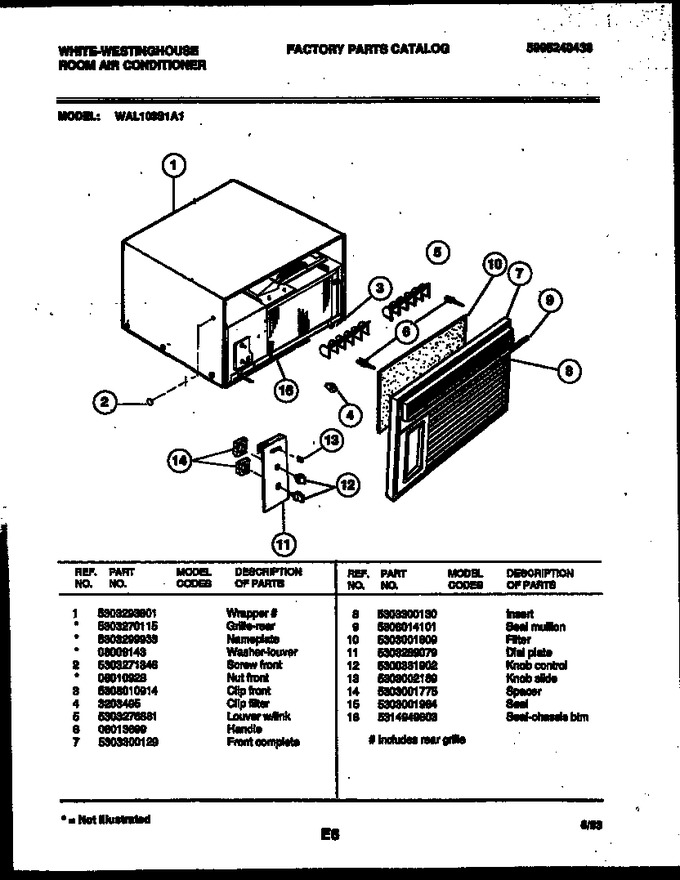

| 1 | 5303293801 | Wrapper (includes Rear Grille) |
|
- | |||||
| 2 | 5303271346 | Screw-front |
|
- | |||||
| 3 | 5308010914 | Clip-front |
|
- | |||||
| 4 | 3203495 | Clip-filter |
|
- | |||||
| 5 | 5303276681 | Louver W/ Link |
|
- | |||||
| 6 | 08013699 | Handle |
|
- | |||||
| 7 | 5303300129 | Front Complete |
|
- | |||||
| 8 | 5303300130 | Insert |
|
- | |||||
| 9 | 5308014101 | Seal-mullion |
|
- | |||||
| 10 | 5303001809 | Filter |
|
- | |||||
| 11 | 5303289079 | Dial Plate |
|
- | |||||
| 12 | 5300331902 | Knob Control |
|
- | |||||
| 13 | 5303002189 | Knob-slide |
|
- | |||||
| 14 | 5303001775 | Spacer |
|
- | |||||
| 15 | 5303001984 | Seal |
|
- | |||||
| 16 | 5314949603 | Seal Chassis Btm |
|
- | |||||
| 1A | 5303270115 | Grille-rear (non-illustrated) |
|
- | |||||
| 1B | 5303299933 | Nameplate (non-illustrated) |
|
- | |||||
| 1C | 08009143 | Washer-louver (non-illustrated) |
|
- | |||||
| 2A | 08010928 | Nut Front (non-illustrated) |
|
- |
