02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

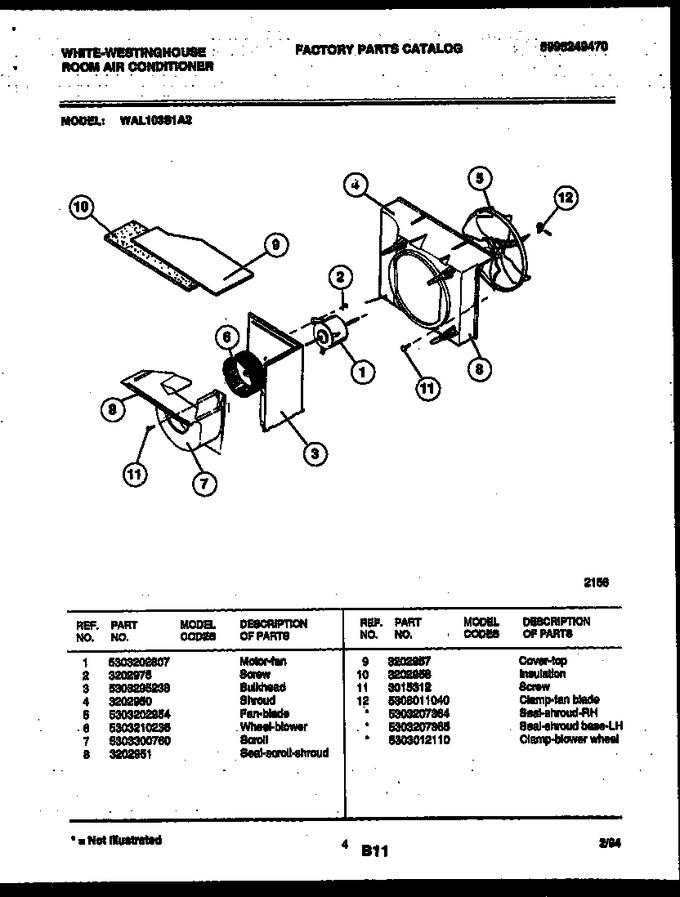

| 1 | 5303202807 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 5303295238 | Bulkhead |
|
- | |||||
| 4 | 3202950 | Shroud |
|
- | |||||
| 5 | 5303202954 | Fan Blade |
|
- | |||||
| 6 | 5303210236 | Wheel-blower |
|
- | |||||
| 7 | 5303300760 | Scroll |
|
- | |||||
| 8 | 3202951 | Seal-scroll-shroud |
|
- | |||||
| 9 | 3202957 | Cover-top |
|
- | |||||
| 10 | 3202958 | Insulation |
|
- | |||||
| 11 | 3015312 | Screw |
|
- | |||||
| 12 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| *89166 | 5303207365 | Seal-shroud Base-lh |
|
- | |||||
| *89166 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| *89166 | 5303207364 | Seal-shroud-rh |
|
- |
