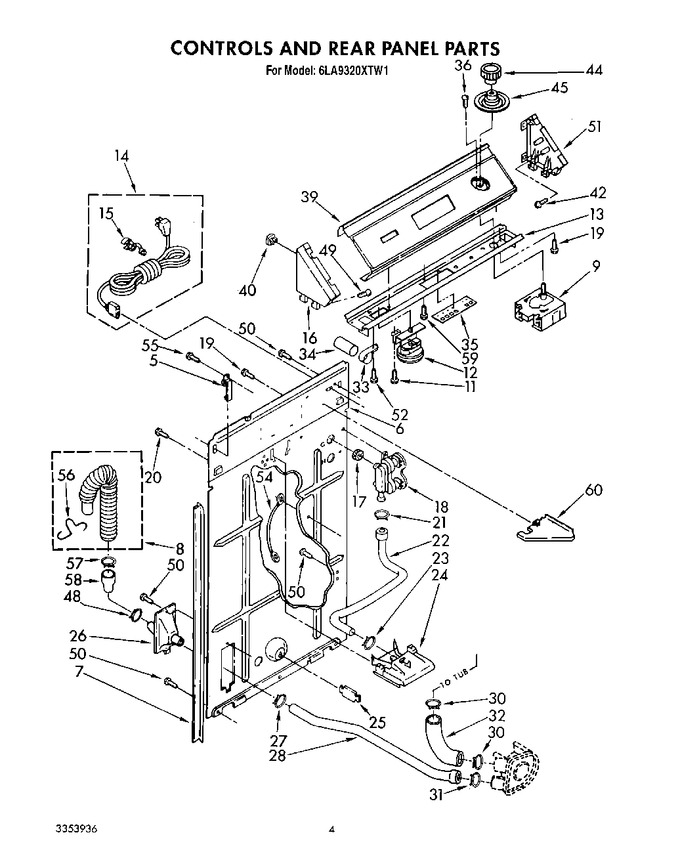

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Miscellaneous


05 - Brake, Clutch, Gearcase, Motor & Pump


06 - Machine Base


07 - Wiring Harness


08 - Brake And Drive Tube


09 - Gearcase


10 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	387402		Hinge, Console (2)				$ 5.84
6	3348430		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285666		Hose, Corrugated Plastic Drain (10 Ft.) (not Included)   (Replaces: 388418)			Immediately	$ 56.11
8	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 387325)			Immediately	$ 33.20
9	3354421		Timer, Control (50 Hz.) (motor Not Serviced)		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	3352559		Switch, Pressure		Appelez-nous	-
13	3351951		Bracket, Control		Appelez-nous	-
14	3353308		Cord, Power		Appelez-nous	-
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
16	63793		Cap, End (l.h.)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285874		Valve, Water Mixing   (Replaces: 3348789)				$ 183.31
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
20	WP681414		Screw, Ground (10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
21	WP596669		Clamp, Hose (alt.)   (Replaces: 353367)			Immediately	$ 7.56
21	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 7.56
21	WP596669		Clamp, Hose (alt.)   (Replaces: 272846)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3348552)				$ 76.37
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
33	357030		Clamp, Capacitor				$ 18.98
34	WP8572717		Capacitor, Motor Start (mfd 189, 110 Volts)   (Replaces: 357021)			Immediately	$ 72.13
35	3353176		Switch, Quiet Touch (6-pad)		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.13
39	3352064		Panel, Console		Appelez-nous	-
40	689559		Nut, Push-in (2)		Appelez-nous	-
42	355326		Screw, 13/16 X 5/8 (4)		Appelez-nous	-
44	3352603		Knob, Timer		Appelez-nous	-
45	3352554		Dial, Timer		Appelez-nous	-
48	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
49	WP388326		Screw, 8-18 (panel To Top)   (Replaces: 3353145)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	63799		Cap, End (r.h.)				$ 80.66
52	WP3390631		Screw,10-16x5/16   (Replaces: 9420601)				$ 7.04
54	364089		Wire, Ground		Appelez-nous	-
55	WP308685		Screw, Hinge To Rear Panel (2) (10-16 X 1/2)   (Replaces: 3393008)			Immediately	$ 7.08
56	3350222		Retainer, Wire				$ 34.76
57	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 7.03
58	WP384496		Coupling, Hose   (Replaces: 384496)				$ 77.48
59	WP273556		Screw (4)   (Replaces: 98610)			Immediately	$ 7.04
60	WP3357450		Washer, Hose Adapter (2) (export)   (Replaces: 3357450)				$ 9.91
60	WP89503		Hose, Inlet (2)   (Replaces: 3354858)			Immediately	$ 21.68
60	WP16123		Washer, Inlet Hose (4)   (Replaces: 16123)				$ 6.93
60	3348424		Sheild, Suds		Appelez-nous	-
60	WP3357397		Hose, Adapter (2) (export)   (Replaces: 3357397)				$ 80.33
