Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 5303283877 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
6 5303291330 Gasket,terminal Cover Appelez-nous -
7 5304416126 Cover-terminal,compressor Appelez-nous -
9 5303294292 Nut-terminal Cover Appelez-nous -
13 309606001 Tray-evaporator Appelez-nous -
16 5308017120 Capillary Tube,45 Inch Long ,cut To Length Appelez-nous -
19 5303002664 Washer,compressor Mtg Appelez-nous -
36 5303303558 Strap-chassis Pull Appelez-nous -
F1 309603107 Compressor,qk175cbb ,gold Srar Special Order $ 382.67

F10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

F11 309606105 Evaporator Appelez-nous -
F12 5304407866 Condenser Appelez-nous -
F17 5304417604 Tube-process Appelez-nous -
F8 5304419795 Overload Protector,mra 12053-386 Appelez-nous -
NI 309112501 Washer,metallic Appelez-nous -
NI 5303293809 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

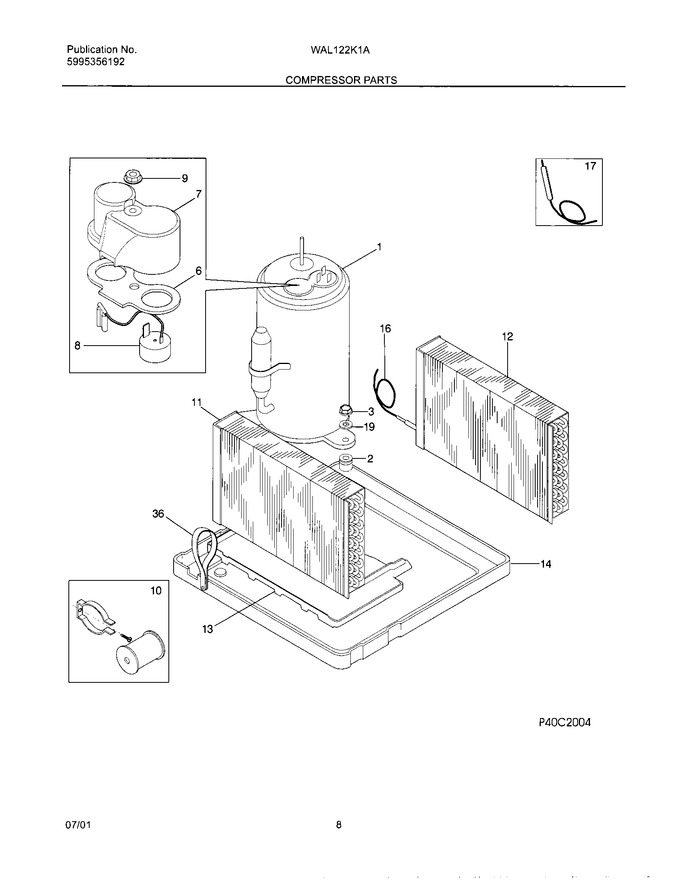

Diagram for WAL122K1A1
